PT100-T1溫度傳感器
采用進口PT100鉑電阻/J、K、E型熱電偶溫度芯體;
選進的貼片工藝,具有零點、滿量程、溫度補償;
精度等級:B級、A級、1/3B級可選;
產品響應快速,反應靈敏,精度高;
結構多樣化:螺紋活套式安裝,產品安裝方向可調;
<
>
  • 產品優勢
  • 規格參數
  • 訂購注意事項
  • 使用注意事項
  • 常見問題
  • 我要提建議

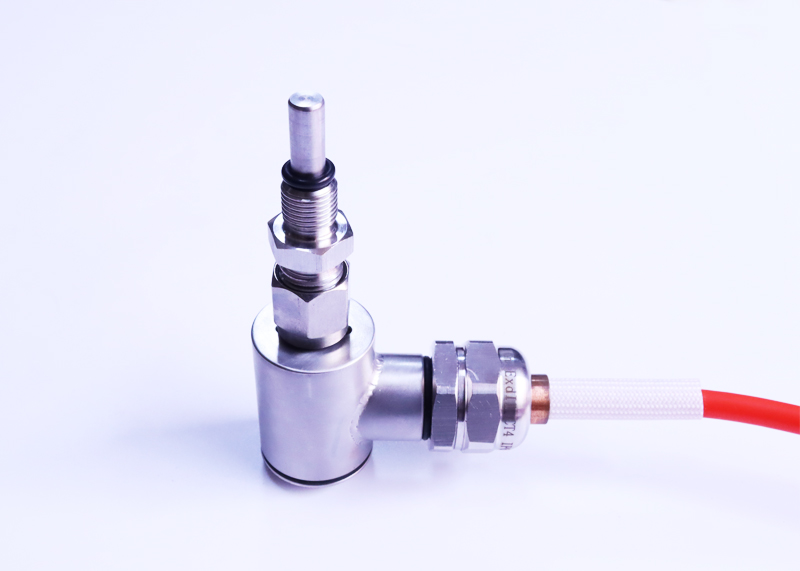

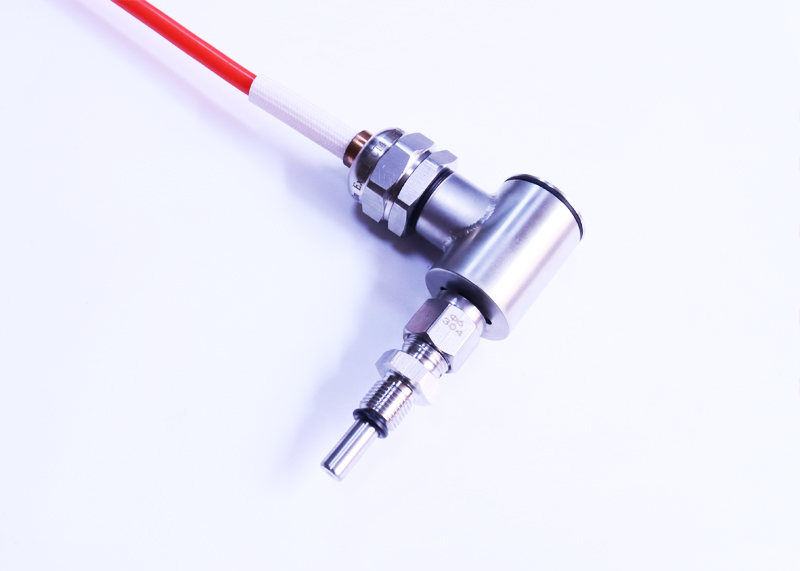

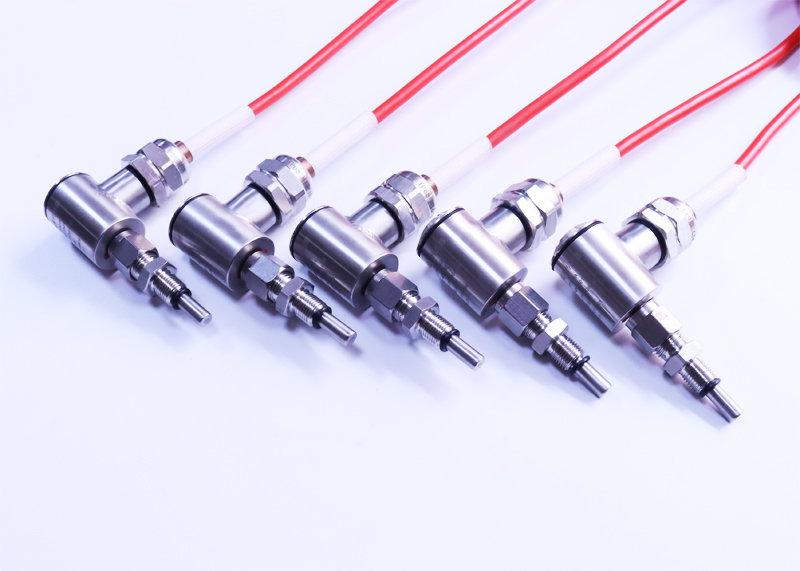

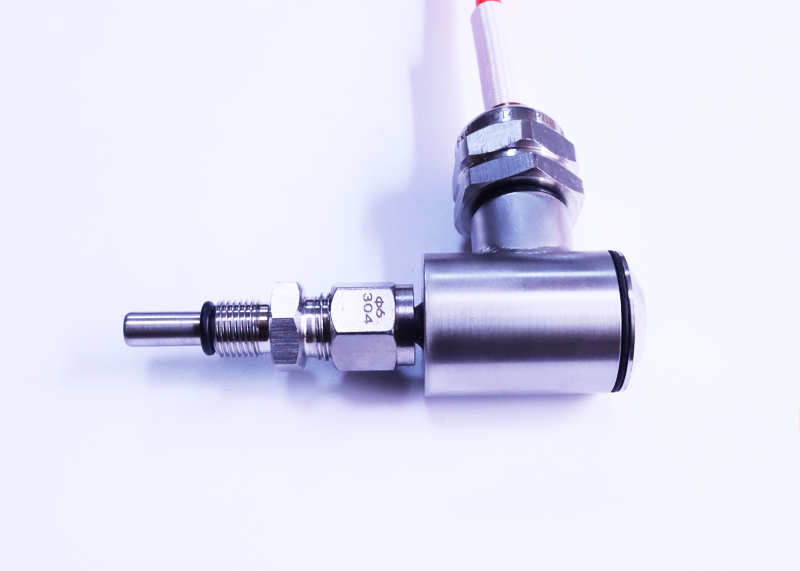

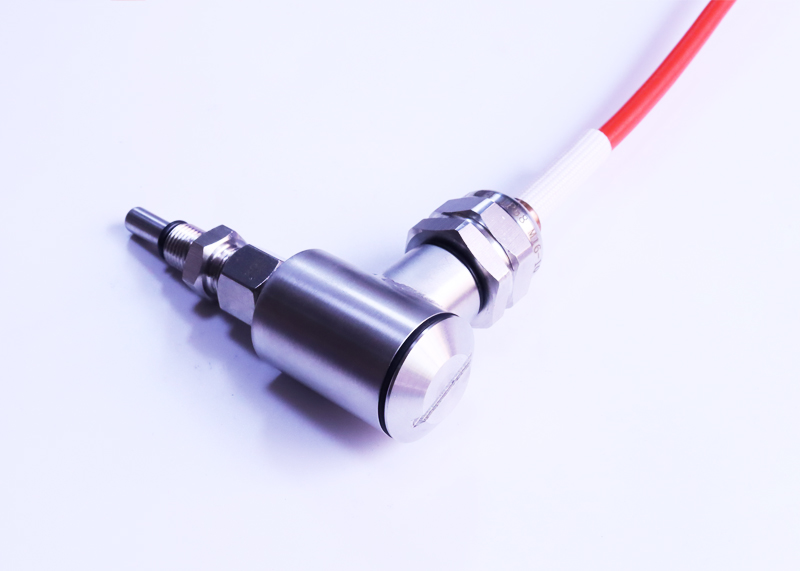

PT100-T1 溫度傳感器


型號:PT100-T1溫度傳感器
采用進口PT100鉑電阻/J、K、E型熱電偶溫度芯體;
選進的貼片工藝,具有零點、滿量程、溫度補償;
精度等級:B級、A級、1/3B級可選;
產品響應快速,反應靈敏,精度高;
結構多樣化:螺紋活套式安裝,產品安裝方向可調;
氣連接IP65/68,二線/三芯/四芯屏蔽溫度補償線;
304/316/剛玉管/合金等制定材料外殼;
溫度范圍:-50℃ ~0~100℃~500℃;
探桿長度/直徑/螺紋規格可制定;
可替代國外同類型高壓產品;

PT100-T1溫度傳感器
主要應用:
環境溫度/大棚溫度監控;
設備溫度監控;
自動化/農業/化工/電力/氣象等領域的溫度測量與控制

Model: PT100-T1 temperature sensor

Imported PT100 platinum resistor / J, K and e thermocouple temperature core is adopted;
The selected patch process has zero point, full scale and temperature compensation;
Accuracy grade: Grade B, Grade A and grade 1 / 3b are optional;
The product has fast response, sensitive response and high precision;
Diversified structure: thread installation type, armored type, patch type, plug-in type, flange type, etc;
Air connection IP65 / 68, two wire / three core / four core shielded temperature compensation wire;
304 / 316 / corundum tube / alloy and other shell materials;
Temperature range: - 198 ℃ ~ - 40 ℃ ~ 0 ~ 100 ℃ ~ 500 ℃ ~ 1000 ℃;
Probe rod length / diameter / thread specification / flange size can be formulated;
It can replace foreign high-voltage products of the same type;

PT100-T1 temperature sensor Main applications:

Temperature measurement and monitoring of inner cavity of pipeline / equipment;
Equipment temperature monitoring;
Temperature measurement and control in automation / Agriculture / chemical industry / electric power / meteorology and other fields


應用領域:
  • 智慧消防

  • 蒸汽供給系統

  • 冶金設備

  • 石油化工

  • 石油管道

  • 擠出機設備

PT100-T1溫度傳感器


主要技術參數
測量介質:液體、氣體(與產品過程連接材料兼容)
壓力形式:表壓、絕壓

量    程:
-50℃~100℃/主要測量環境溫度;
0℃~100℃~~500℃/PT100型測量高溫介質溫度;
0℃~500℃/熱電偶型測量高溫/超高溫介質溫度;

綜合精度:
PT100類型:A級,B級,1/3B級
熱電偶類型:Ⅰ級,Ⅱ級,Ⅲ級

輸出信號:
PT100類型:電阻信號(參照分度表)
PT1000類型:電阻信號(參照分度表)
熱電偶類型:mV電壓信號(參照分度表)
絕緣阻抗:≥1000 MΩ/100VDC

介質溫度:
-50℃~100℃/主要測量環境溫度;
0℃~100℃~~500℃/PT100型測量高溫介質溫度;
0℃~500℃~1000℃/熱電偶型測量高溫/超高溫介質溫度;
環境溫度:-40~70℃
穩 定 性:≤±0.5%FS/年
振動影響:≤±0.25%FS/年(機械振動頻率20Hz~1000Hz)
耐壓壓力:通用小于10個大氣壓,特殊要求需定制
防護等級:IP65/IP68
連接材料:304/316L/剛玉等
過程連接:M20X1.5,G1/2,用戶制訂規格




Measuring medium: liquid and gas (compatible with product process connecting materials)

Pressure form: gauge pressure and absolute pressure

Range:
-50 ℃ ~ 100 ℃ / mainly measuring ambient temperature;
0 ℃ ~ 100 ℃ ~ 500 ℃ / PT100 type measures the temperature of high-temperature medium;
0 ℃ ~ 500 ℃ ~ 1000 ℃ / thermocouple type to measure the temperature of high temperature / ultra-high temperature medium;

Comprehensive accuracy:
PT100 type: Class A, class B, class 1 / 3B
Thermocouple type: class I, II and III

Output signal:
PT100 type: resistance signal (refer to the graduation table)
PT1000 type: resistance signal (refer to the graduation table)
Thermocouple type: MV voltage signal (refer to the graduation table)
Insulation impedance: ≥ 1000 m Ω / 100VDC

Medium temperature:
-50 ℃ ~ 100 ℃ / mainly measuring ambient temperature;
0 ℃ ~ 100 ℃ ~ 500 ℃ / PT100 type measures the temperature of high-temperature medium;
0 ℃ ~ 500 ℃ ~ 1000 ℃ / thermocouple type to measure the temperature of high temperature / ultra-high temperature medium;

Ambient temperature: - 40 ~ 70 ℃
Stability: ≤± 0.5% FS / year
Vibration influence: ≤± 0.25% FS / year (mechanical vibration frequency 20Hz ~ 1000Hz)
Withstand pressure: less than 10 atmospheres in general, customized for special requirements
Protection grade: IP65 / IP68
Connecting material: 304 / 316L / corundum, etc
Process connection: m20x1 5. G1 / 2, specifications formulated by users

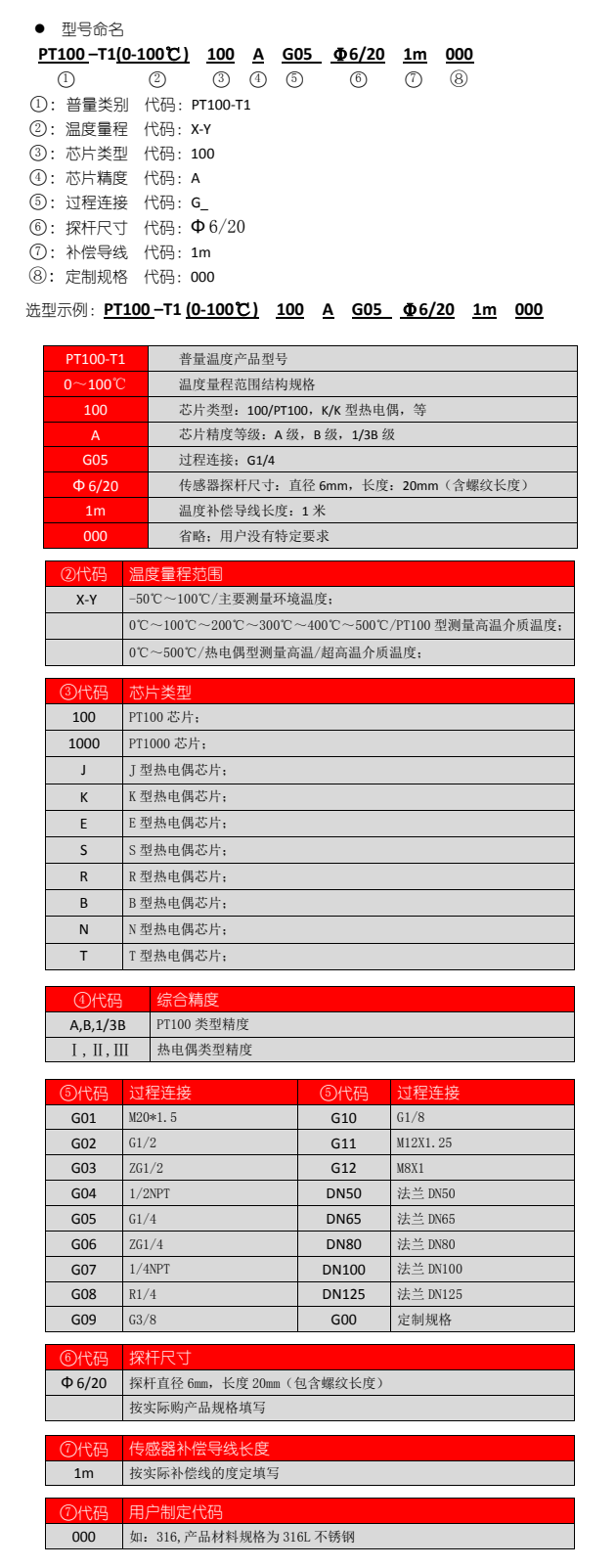

PT100-T1溫度傳感器產品訂購注意事項

1、產品量程選擇:
   為了使產品精度、壽命、穩定性等功能達到最佳效果,產品的量程選   擇參照以下公式計算:
   量程 = 系統最大溫度 X (1.2-1.5)倍;
   產品的實際測量壓力范圍,應該在量程范圍的15%-80%;

2、產品輸出/精度等級/采集方式:
   不同產品規格,精度等級不一樣:
   PT100類型:A級,B級,1/3B級
   熱電偶類型:Ⅰ級,Ⅱ級,Ⅲ級
   溫度傳感器的后端采集方式要與傳感器的輸出匹配
   PT100類型:電阻信號,采集儀表或輸入模塊或板需要可采集PT100的電阻信號;
   PT1000類型:電阻信號,采集儀表或輸入模塊或板需要可采集PT1000的電阻信號;
   熱電偶類型:mV電壓信號,采集儀表或輸入模塊或板需要可采集熱電偶的信號;


3、用戶要了解產品的測量介質特性:
   介質規格、介質溫度、介質純度(是否含有雜質或顆粒等);

4、用戶要了解產品的安裝環境及安裝方式:
   室內或室外安裝;
   環境溫度;
   要求的密封等級;
   設備的振動范圍;
   壓力密封方式:錐度密封、端面密封、弧面密封、球面密封;
   安裝空間是否滿足產品外形尺寸;


Precautions for ordering PT100-T1 temperature sensor

1. Product range selection:
In order to achieve the best effect of product accuracy, service life, stability and other functions, the range of the product is calculated according to the following formula:
Range = x (1.2-1.5) times the maximum temperature of the system;
The actual measuring pressure range of the product should be 15% - 80% of the measuring range;

2. Product output / accuracy level / acquisition method:
Different product specifications and accuracy levels:
PT100 type: Class A, class B, class 1 / 3B
Thermocouple type: class I, II and III
The back-end acquisition mode of the temperature sensor shall match the output of the sensor
PT100 type: resistance signal. The resistance signal of Pt100 can be collected as required by the acquisition instrument or input module or board;
PT1000 type: resistance signal. The resistance signal of PT1000 can be collected as required by the acquisition instrument or input module or board;
Thermocouple type: MV voltage signal. The signal of thermocouple can be collected as required by the acquisition instrument or input module or board;

3. Users need to understand the characteristics of the measuring medium of the product:
Medium specification, medium temperature, medium purity (whether it contains impurities or particles, etc.);

4. Users should understand the installation environment and installation method of the product:
Indoor or outdoor installation;
Ambient temperature;
Sealing grade requirements;
Vibration range of equipment;
Pressure seal mode: taper seal, end face seal, arc seal and spherical seal;
Whether the installation space meets the overall dimension of the product;

PT100-T1溫度傳感器使用注意事項

安裝使用請,核對產品標牌及合格證相關參數與使用工況是否相符合;熱電阻/熱電偶安裝時,其插入深度不小于熱電阻保護管外徑的8倍~10倍;
盡可能使熱電阻/熱電偶受熱部分增長;
熱電阻/熱電偶盡可能垂直安裝,以防在高溫下彎曲變形。
熱電阻/熱電偶使用中為了減小誤差,應盡量使保護套管表面和被測介質溫度接近;
產品安裝時,受力部位為“過程連接六方扳手位”,扳手規格與六方相對應;
嚴禁被測系統的介質溫度、壓力量程、激勵電壓超過變送器的額定使用范圍;
注意保護傳感器/變送器電纜線或補償導線;
盡量避免直接接近引起干擾的用戶裝置或電器;


Precautions for use of Pt100-T1 temperature sensor

For installation and use, please check whether the relevant parameters of the product label and certificate are consistent with the operating conditions;
When the thermal resistance / thermocouple is installed, its insertion depth shall not be less than 8 ~ 10 times of the outer diameter of the thermal resistance protection tube;
Increase the heating part of thermal resistance / thermocouple as much as possible;
The thermal resistance / thermocouple shall be installed vertically as far as possible to prevent bending and deformation at high temperature.
In order to reduce the error during the use of thermal resistance / thermocouple, the surface of protective sleeve shall be close to the temperature of measured medium as much as possible;
When installing the product, the stressed part is "process connection hexagonal wrench position", and the wrench specification corresponds to the hexagonal wrench position;
It is strictly prohibited that the medium temperature, pressure range and excitation voltage of the measured system exceed the rated service range of the transmitter;
Pay attention to protect the sensor / transmitter cable or compensation wire;
Try to avoid direct access to user devices or electrical appliances causing interference;
