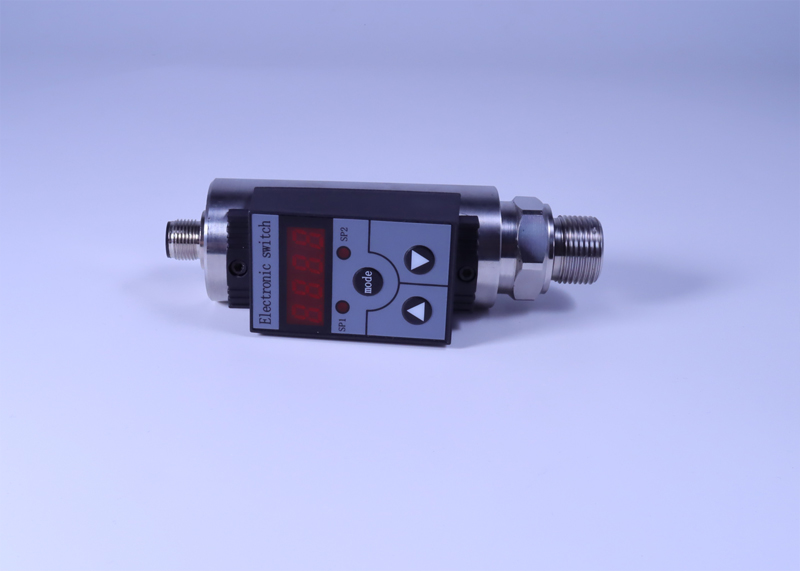

芯? ? ? ?片:
采用進口感壓芯片;選進的貼片工藝,具有零點、滿量程補償、溫度補償;
擴散硅芯體,靈敏度高,輸出大,具有零點、滿量程補償、溫度補償;適用于小量程壓力變送器;
應變計芯體,高強度彈性形變感壓材料,配有溫度補償,具有抗沖擊、耐疲勞性能優勢;適用于一般量程壓力變送器;
信號處理及控制輸出:

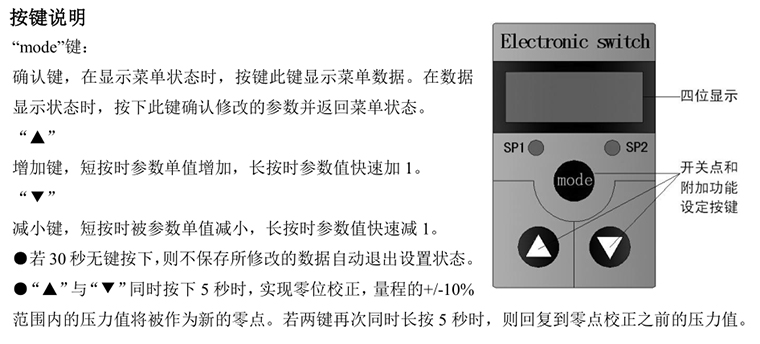

4位數字顯示當前壓力值,顯示范圍:-1999 - 9999,按鍵調校及現場設置各種參數,操作方便;
高精度穩定放大集成電路,24位ADC采樣處理芯片,DSP數字信號調理算法,多點性線溫度校準,電壓電流過載保護;
兩路PNP或NPN開關量 + 4-20mA模擬量變送輸出;
兩路PNP或NPN開關量 + RS485數字通訊輸出;

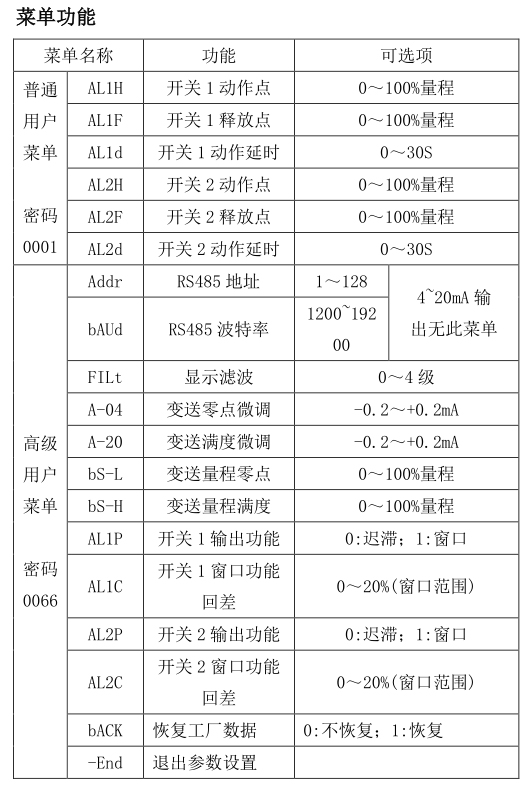

壓力預設開關點和延滯切換輸出,開關量可在零點到滿度之間任意設定;
外殼設有節點動作發光二級管,便于觀察;
2路開關量輸出,帶載能力1.2A ;

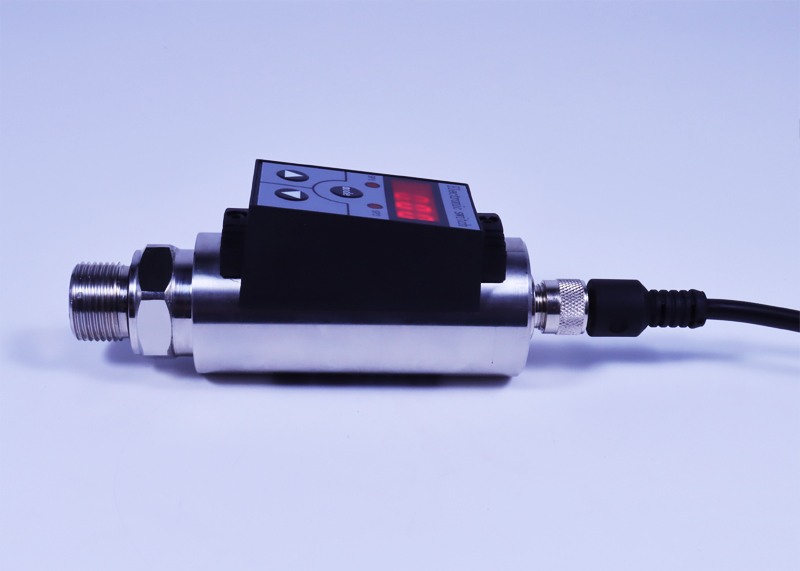

結? ? ? ?構:
結構小巧、全封焊結構、抗沖擊、耐疲勞、可靠性高、多種過程連接方式;
過程連接材料,304,方式多樣化(M20、M16、M12、G1/4、G1/2、1/2NPT、1/4NPT等);
外殼壓力接口可330°旋轉,方便旋轉表頭方向;
電氣連接:4/5芯M12連接器、四芯赫斯曼連接器、4/5芯航空連接器可選項;
按輸出配套標準四芯/五芯屏蔽電纜;
應? ? ? 用:
管道水壓及水壓設備壓力測量與控制
液壓系統管道及液壓設備壓力測量控制
與PLC、顯示儀表配套實現壓力開關量的采集與輸入
其它民用/工業 自動化領域的壓力測量

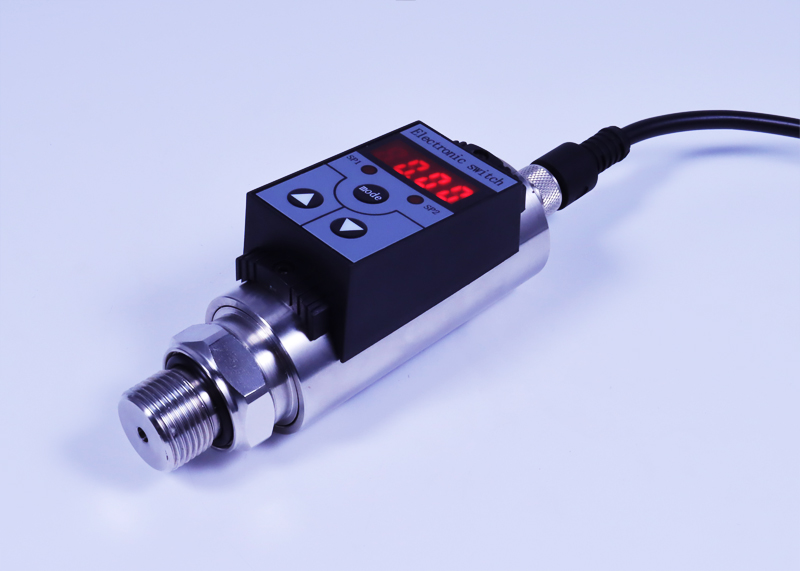

Chip:
Adopt imported voltage sensing chip; select the chip technology, with zero, full range compensation, temperature compensation;
Diffused silicon core, high sensitivity, large output, zero point, full range compensation, temperature compensation, suitable for small range pressure transmitter;
Strain gauge core, high-strength elastic deformation pressure sensing material, equipped with temperature compensation, has the advantages of impact resistance and fatigue resistance, suitable for general range pressure transmitter;
Signal processing and control output:
4-digit digital display of current pressure value, display range: - 1999 - 9999, key adjustment and field setting of various parameters, easy to operate;
High precision stable amplification IC, 24 bit ADC sampling processing chip, DSP digital signal conditioning algorithm, multi-point line temperature calibration, voltage and current overload protection;
Two channels of PNP or NPN switching value + 4-20mA analog quantity transmission output;
Two channels of PNP or NPN switching value + RS485 digital communication output;

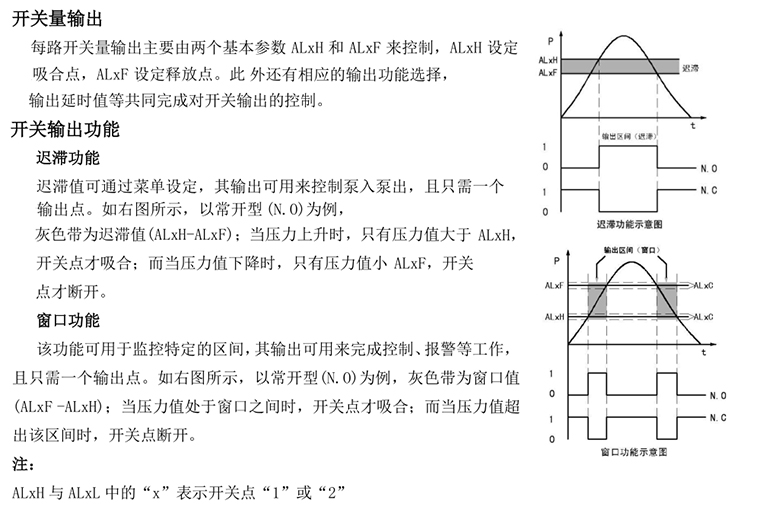

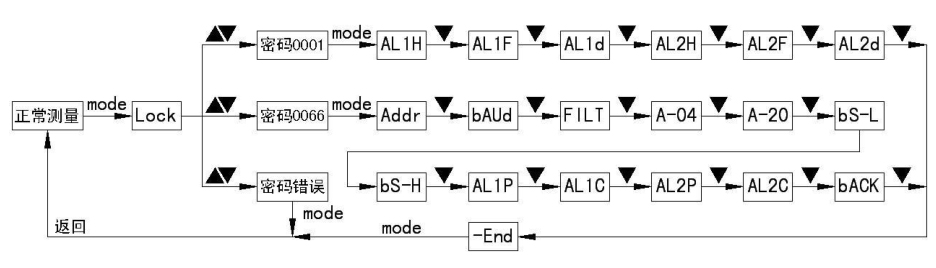

Pressure preset switch point and delay switch output, switch value can be set from zero point to full degree;
The shell is provided with a node action led for easy observation;
2-way switch output with load capacity of 1.2A;

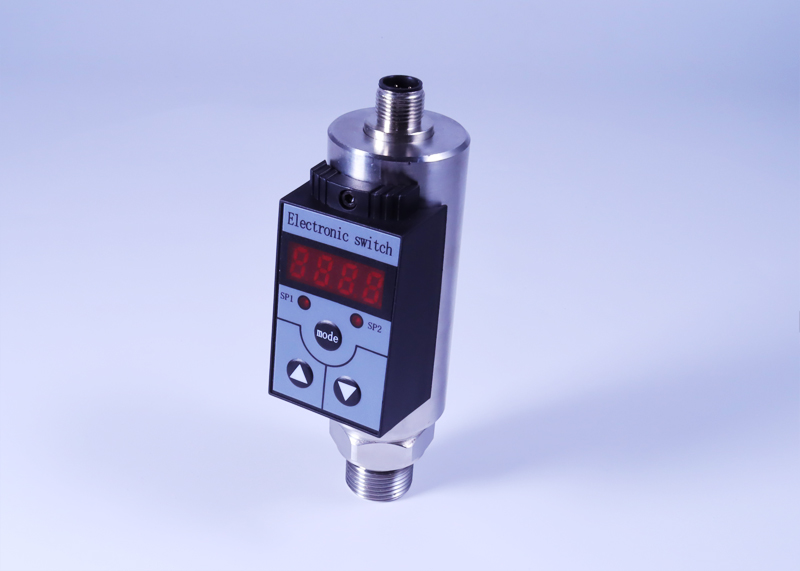

Structure:
Small structure, full seal welding structure, impact resistance, fatigue resistance, high reliability, a variety of process connection;
Process connection material, 304, diversified modes (M20, M16, M12, G1 / 4, G1 / 2, 1 / 2NPT, 1 / 4NPT, etc.);
The shell pressure interface can rotate at 330 ° for the convenience of rotating the direction of the meter head;
Electrical connection: optional 4 / 5-core M12 connector, 4-core hesman connector and 4 / 5-core aviation connector;
4-core / 5-core shielded cable according to output matching standard;
Application:
Pressure measurement and control of pipeline water pressure and hydraulic equipment
Pressure measurement control of hydraulic system pipeline and hydraulic equipment
Complete with PLC and display instrument to realize the collection and input of pressure switch value
Pressure measurement in other civil / industrial automation fields
石油化工
石油管道
供氣系統
恒壓供水系統
給水設備
液壓設備
一、技術參數
測量介質:液體、氣體(與產品過程連接材料兼容)
壓力形式:表壓、絕壓
量? ? 程:0~0.6~60MPa~150MPa
-0.1~0~0.6~5MPa
-100KPa~10KPa~40MPa
±10KPa~±100KPa
綜合精度:±0.25%FS;±0.5%FS;±1%FS
非 線 性:≤0.25%FS
重 復 性:≤0.1%FS
輸出信號:PNP/NPN開關量
PNP/NPN開關量 + 4-20mA模擬量
PNP/NPN開關量 + RS485-RTU 通訊
供電電壓:24VDC(9~30VDC) /消耗電流<60mA
顯示方式:4位數碼管
顯示范圍:-1999 - 9999
開關負載容量:<24V1.2A
開關壽命:≥100萬次
絕緣阻抗:≥1000 MΩ/100VDC
負載阻抗:電流輸出: ≤800Ω
介質溫度:-20~80℃
環境溫度:-20~70℃
補償溫度:0~70℃
響應時間:≤5mS
過載壓力:150%FS
破壞壓力:5倍量程(量程小于5MPa);3倍量程(量程大于5MPa)
電氣連接:M12電氣連接器(四芯/五芯)
防護等級:Ip65
連接電纜:四芯/五芯屏蔽電纜,標準長度:3米
連接材料:304/316L
過程連接:M20X1.5,G1/2,G1/4,ZG1/4,1/4NPT,ZG1/2,G3/8,M12X1.5……

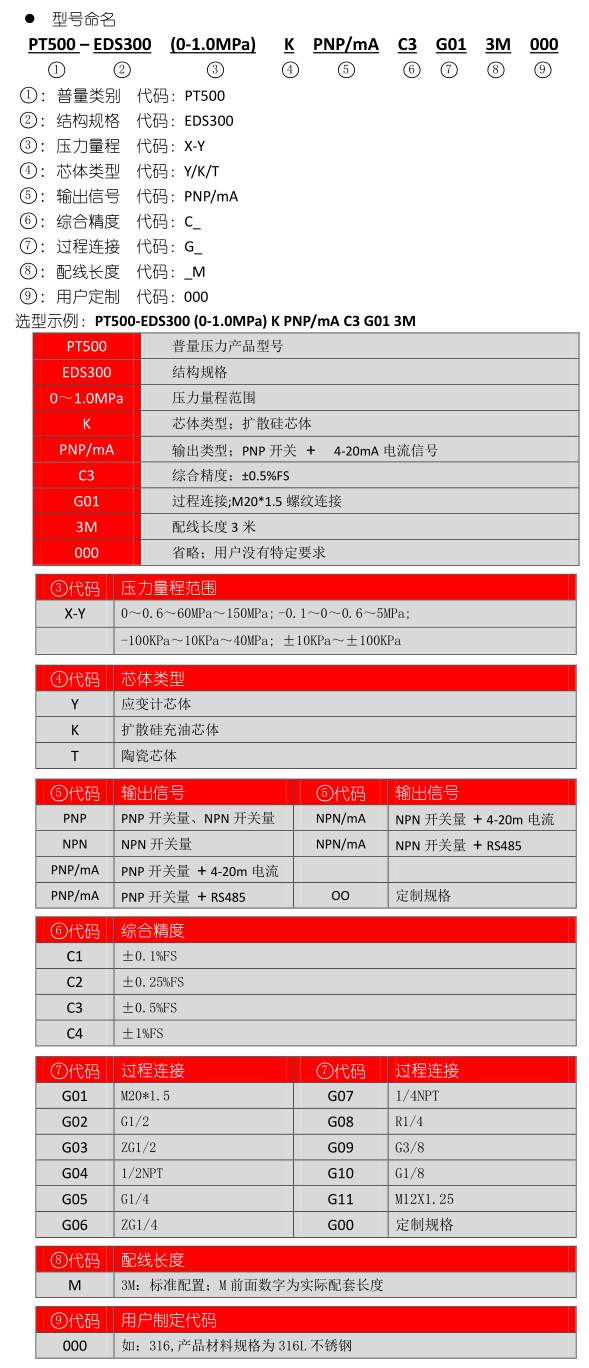

二、規格型號

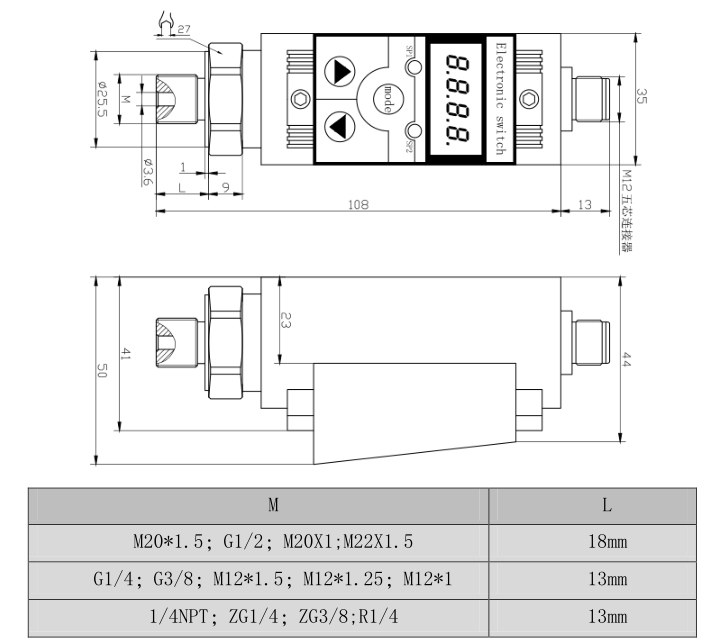

三、結構尺寸

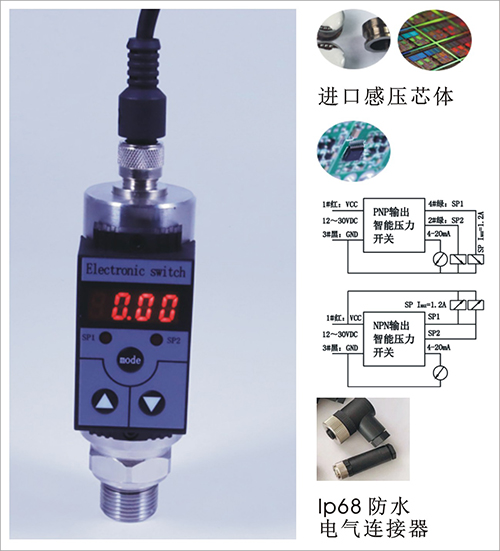

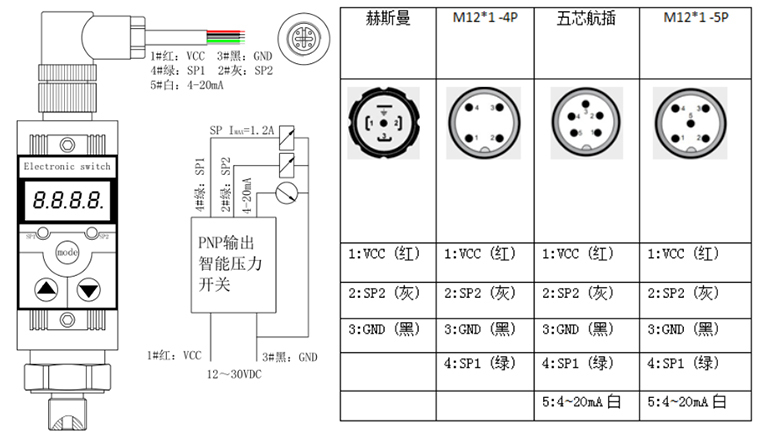

四、電氣連接

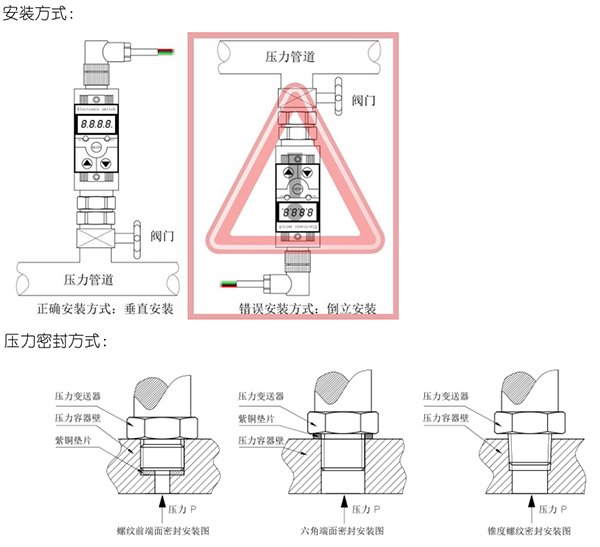

五、安裝方式
Measuring medium: liquid and gas (compatible with connecting materials of product process)
Pressure form: gauge pressure, absolute pressure
Range: 0 ~ 0.6 ~ 60MPa ~ 150MPa
-0.1~0~0.6~5MPa
-100KPa~10KPa~40MPa
±10KPa~±100KPa
Comprehensive accuracy: ± 0.25% FS; ± 0.5% FS; ± 1% FS
Non linear: ≤ 0.25% FS
Repeatability: ≤ 0.1% FS
Output signal: PNP / NPN switching value
PNP / NPN switching value + 4-20mA analog value
PNP / NPN switching value + rs485-rtu communication
Power supply voltage: 24VDC (9-30vdc) / consumption current < 60mA
Display mode: 4-digit nixie tube
Display range: - 1999 - 9999
Switch load capacity: < 24v1.2a
Switch life: ≥ 1 million times
Insulation impedance: ≥ 1000m Ω / 100VDC
Load impedance: current output: ≤ 800 Ω
Medium temperature: - 20-80 ℃
Ambient temperature: - 20 ~ 70 ℃
Compensation temperature: 0 ~ 70 ℃
Response time: ≤ 5ms
Overload pressure: 150% FS
Failure pressure: 5 times of range (range less than 5MPa); 3 times of range (range greater than 5MPa)
Electrical connection: M12 electrical connector (four core / five core)
Protection grade: IP65
Connecting cable: four core / five core shielded cable, standard length: 3M
Connection material: 304 / 316L
Process connection: M20x1.5, G1/2, G1/4, ZG1/4, 1/4NPT, ZG1/2, G3/8, M12x1.5
The housing must be grounded separately
