可替代DAVS壓力變送器
PT500-DAVS壓力變送器
采用純國產感壓芯片;選進的貼片工藝;
高精度、穩定、數字標定調節、放大集成電路;
輸出信號4-20mA二線制;
可替代Hirschmann品牌DAVS系列產品;
M12一體連接器;

常用關鍵字:
DAVS壓力變送器 替代DAVS變送器 替換DAVS變送器
Hirschmann傳感器 Hirschmann變送器
<
>
  • 產品優勢
  • 規格參數
  • 訂購注意事項
  • 使用注意事項
  • 常見問題
  • 我要提建議

PT500-DAVS壓力變送器
采用純國產感壓芯片;選進的貼片工藝;
高精度、穩定、數字標定調節、放大集成電路;
輸出信號4-20mA二線制;
可替代Hirschmann品牌DAVS系列產品;
M12一體連接器;

常用關鍵字:
DAVS壓力變送器  替代DAVS變送器 替換DAVS變送器
Hirschmann傳感器  Hirschmann變送器


PT500-DAVS Pressure Transmitter
It adopts pure domestic pressure sensitive chip and selective placement technology;
High precision, stable, digital calibration adjustment, amplification integrated circuit;
Output signal 4-20mA two-wire system;
It can replace Hirschmann Davs series products;
M12 integrated connector;

Common keywords:
Davs pressure transmitter replaces Davs transmitter replaces Davs transmitter
Hirschmann sensor Hirschmann transmitter

芯       片:
采用純國產感壓芯片;
選進的貼片工藝;
零點、滿度,溫補、線性補償;
高阻抗、高精度、高穩定性;
100萬次使用壽命以上;

信號處理及輸出:
24位ADC采樣處理芯片;
DSP數字信號調理算法;
多點性線溫度校準;
電壓電流過載保護;
標準工業信號輸出:4-20mA(二線制),0-20mA(三線制),0-5VDC,0-10VDC,0.5-4.5VDC(三線制);
采用先進的32bit微處理器和24bit ADC

結       構:
厚膜結構:深度氬弧焊接,連接彈性材料與過程接頭,強度高,抗沖擊,耐疲勞;
溥膜結構:激光焊接,連接彈性材料與過程接頭,硅油介質傳遞壓力,響應快,耐疲勞,小量程;
304/316殼體,強度可靠堅固;

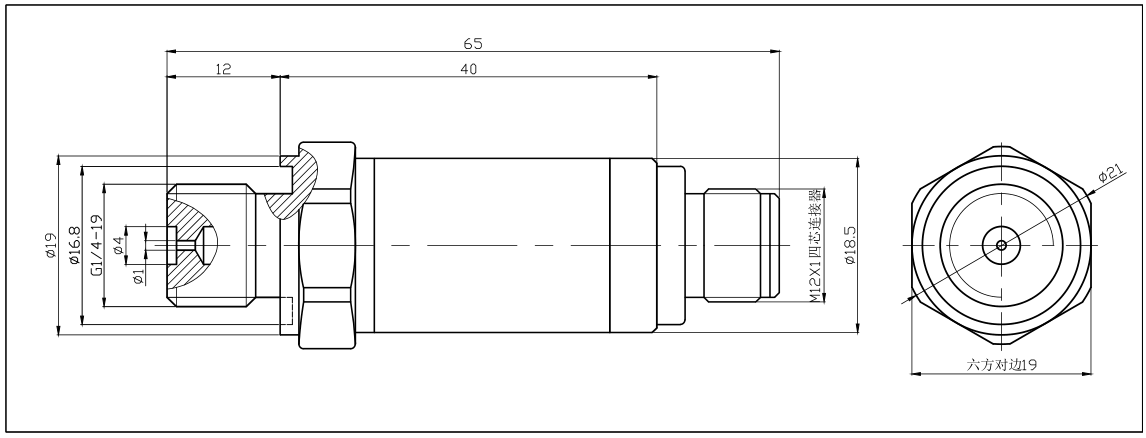

整體結構小巧,整體尺寸:直徑19X長65mm,過程連接標準G1/4;
過程連接材料:304或316;

應      用:
油壓、水壓、氣壓壓力測量與監控;
工業/電力/石油/自動化等領域的設備壓力測量;

Chip:
Pure domestic pressure sensing chip is used;
The selected placement process;
Zero point, fullness, temperature compensation and linear compensation;
High impedance, high precision and high stability;
More than 1 million times of service life;

Signal processing and output:
24 bit ADC sampling and processing chip;
DSP digital signal conditioning algorithm;
Multipoint linear temperature calibration;
Voltage and current overload protection;
Standard industrial signal output: 4-20mA (two-wire system), 0-20mA (three wire system), 0-5vdc, 0-10vdc, 0.5-4.5vdc (three wire system);
Advanced 32 bit microprocessor and 24 bit ADC are adopted

Structure:
Thick film structure: deep argon arc welding, connecting elastic material and process joint, high strength, impact resistance and fatigue resistance;
PU film structure: laser welding, connecting elastic material and process joint, transmitting pressure with silicone oil medium, fast response, fatigue resistance, small range;
304 / 316 shell, reliable and strong strength;
The overall size is 19x in diameter and 65mm in length. The process connection standard is G1 / 4;
Process connection material: 304 or 316;

Application:
Measurement and monitoring of oil pressure, water pressure and air pressure;
Equipment pressure measurement in industrial / power / Petroleum / automation fields;



應用領域:
  • 智慧城市

  • 油壓系統

  • 冶金設備

  • 石油化工

  • 給水設備

  • 液壓設備

PT500-DAVS壓力變送器主要技術參數:

測量介質:液體、氣體、蒸汽等
壓力形式:表壓
量    程:0~60bar;
0~300bar;
0~400bar;
0~600bar;
綜合精度:±0.1%FS;±0.25%FS;±0.5%FS;
非 線 性:≤0.25%FS
重 復 性:≤0.1%FS
輸出信號:電流型:4~20mA二線制;
供電電壓:24VDC(9~30VDC)
壽    命:≥100萬次
絕緣阻抗:≥1000 MΩ/100VDC
負載阻抗:電流輸出: ≤800Ω;
介質溫度:-20~80℃
環境溫度:-40~70℃
補償溫度:0~70℃
響應時間:≤5mS
過載壓力:150%FS
破壞壓力:3倍量程(量程小于40MPa);2倍量程(量程大于41MPa)
電氣連接:防水緊線螺母直接出線,可配套防爆電氣連接
防護等級:IP68
連接電纜:M12航連接器
連接材料:304/316L

過程連接:G1/4




Main technical parameters of pt500-davs pressure transmitter:

Measuring medium: liquid, gas, steam, etc
Pressure form: gauge pressure
Range: 0~60bar;
0~300bar;
0~400bar;
0~600bar;
Comprehensive accuracy: ± 0.1% FS; ± 0.25% FS; ± 0.5% FS;
Nonlinearity: ≤ 0.25% FS
Repeatability: ≤ 0.1% FS
Output signal: current type: 4-20mA two-wire system;
Power supply voltage: 24 VDC (9 ~ 30 VDC)
Service life: ≥ 1 million times
Insulation impedance: ≥ 1000 m Ω / 100VDC
Load impedance: current output: ≤ 800 Ω;
Medium temperature: - 20 ~ 80 ℃
Ambient temperature: - 40 ~ 70 ℃
Compensation temperature: 0 ~ 70 ℃
Response time: ≤ 5ms
Overload pressure: 150% FS
Failure pressure: 3 times of measuring range (less than 40MPa); 2 times of measuring range (measuring range greater than 41mpa)
Electrical connection: Waterproof tight wire nut directly leads out, can be matched with explosion-proof electrical connection
Protection grade: IP68
Connecting cable: M12 aviation connector
Connection material: 304 / 316L
Process connection: G1 / 4

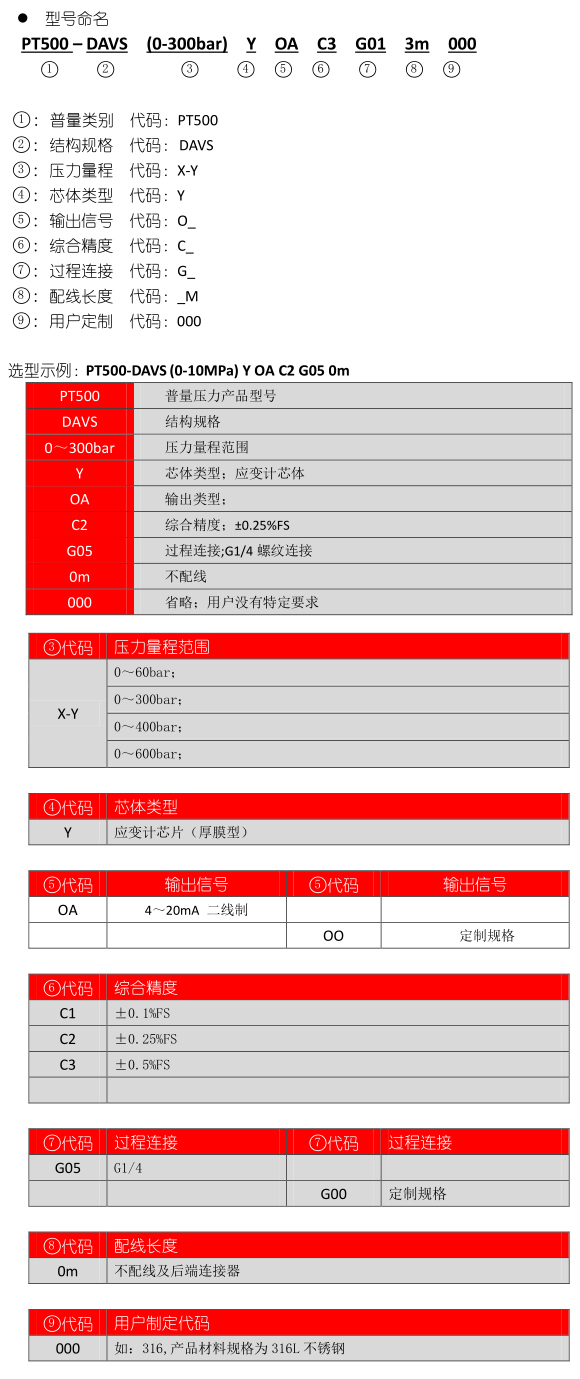

PT500-DAVS壓力變送器產品訂購注意事項
1、產品量程選擇:
為了使產品精度、壽命、穩定性等功能達到最佳效果,產品的量程選擇參照以下公式計算:
量程 = 系統最大壓力 X (1.2-1.5)倍;
產品的實際測量壓力范圍,應該在量程范圍的15%-80%;

2、產品供電及輸出:
供電范圍的選擇按產品的個輸出規格確定:
常規4-20mA輸出,直流12-30VDC供電;

3、用戶要了解產品的測量介質特性:
介質規格、介質溫度、介質純度(是否含有雜質或顆粒等);

4、用戶要了解產品的安裝環境及安裝方式:
室內或室外安裝;
環境溫度;
要求的密封等級;
設備的振動范圍;
安裝方式:螺紋、法蘭、特殊結構;
安裝空間是否滿足產品外形尺寸;


Precautions for ordering PT500-DAVS products
1. Product range selection:
In order to achieve the best effect of product accuracy, life, stability and other functions, the range selection of the product is calculated by referring to the following formula:
Range = x (1.2-1.5) times of the maximum system pressure;
The actual measuring pressure range of the product should be 15% - 80% of the range;

2. Product power supply and output:
The selection of power supply range is determined according to the output specifications of the product:
Conventional 4-20mA output, DC 12-30vdc power supply;

3. The user should understand the measurement medium characteristics of the product:
Medium specification, medium temperature, medium purity (whether containing impurities or particles, etc.);

4. Users should understand the installation environment and installation method of the product:
Indoor or outdoor installation;
Ambient temperature;
Required sealing level;
Vibration range of equipment;
Installation method: thread, flange, special structure;
Whether the installation space meets the overall dimension of the product;

產品供電范圍,9-30VDC;
嚴禁使用硬物(如:螺絲刀、手指、鐵釘?shù)龋┤ナ沟脡毫δて軌毫y量輸出;
電源和信號線按訂購產品規格要求,正確接線;
產品安裝時,受力部位為“過程連接六方扳手位”,扳手規格與六方相對應;
嚴禁被測系統的介質溫度、壓力量程、激勵電壓超過變送器的額定使用范圍;
注意保護變送器引出電纜,現場使用跨度過大時,建議使用金屬管保護或架空;
壓力變送器屬精密計量儀器,切勿強加沖擊、摔打,以免損壞芯體
產品安裝于通風、干燥、無強腐蝕環境,露天安裝加防護裝置,避免陽光直接照射;
產品儀表嚴禁進水/漏水/泡水情況,露天安裝加防護裝置,避免陽光直接照射;

Product power supply range, 9-30vdc ;
It is strictly prohibited to use hard objects (such as screwdriver, finger, iron nail, etc.) to make the pressure diaphragm output under pressure measurement;
The power and signal wires shall be correctly wired according to the specifications of the ordered products;
During product installation, the stressed part is "process connection hexagon wrench position", and the wrench specification corresponds to hexagon;
It is strictly prohibited that the medium temperature, pressure range and excitation voltage of the tested system exceed the rated use range of the transmitter;
Pay attention to protect the outgoing cable of the transmitter. When the span is too large on site, it is recommended to use metal pipe for protection or overhead;
The pressure transmitter is a precision measuring instrument. Do not impose impact or smash to avoid damaging the core
The product is installed in a ventilated, dry and non corrosive environment, and installed in the open with protective devices to avoid direct sunlight;
It is strictly prohibited to enter / leak / soak water in the product instrument, and protective devices shall be installed in the open to avoid direct sunlight;
