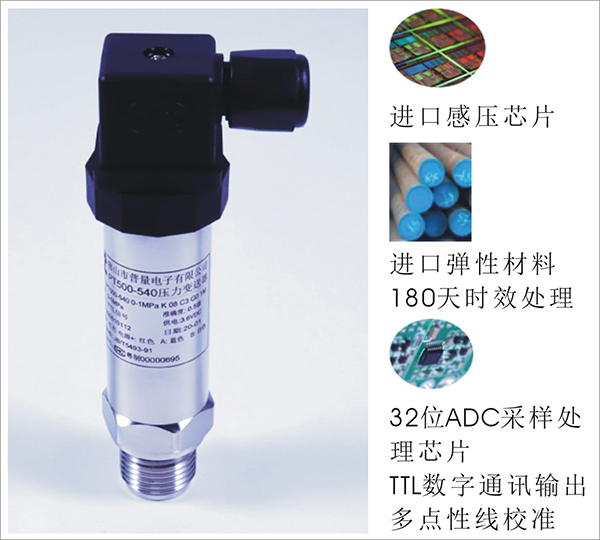

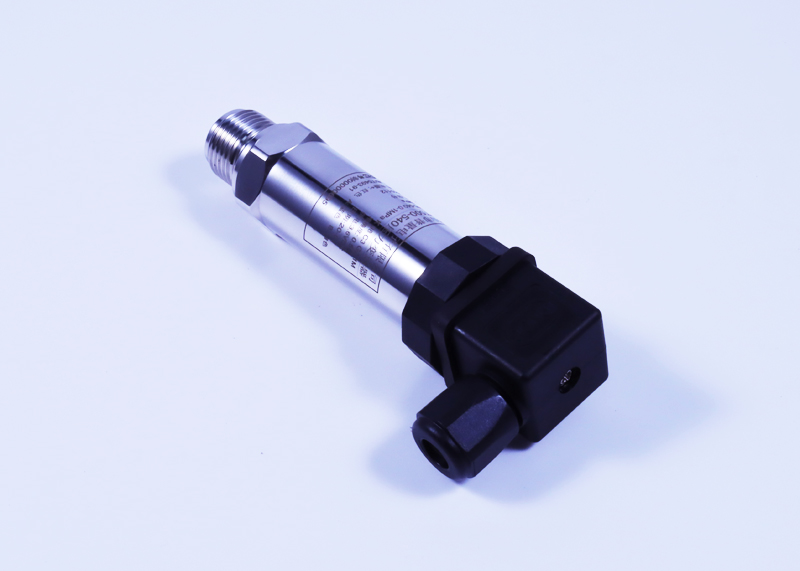

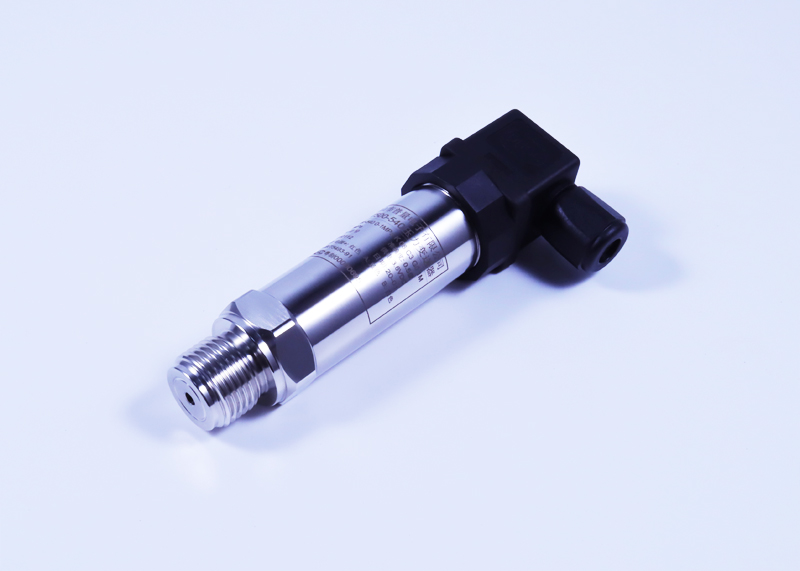

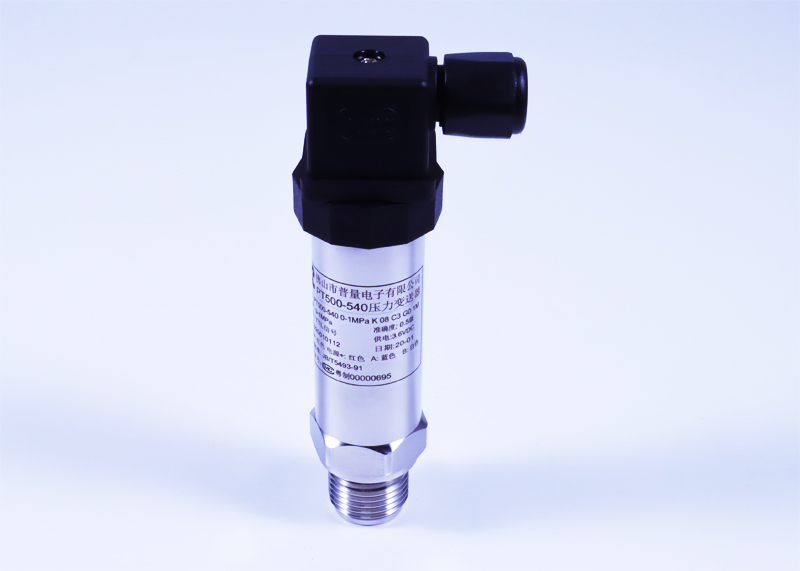

TTL 數字壓力變送器 PT500-540
型號:PT500-540
進口壓力芯體;
高精度、穩定、數字放大電路,TTL MODBUS-TRU通訊;
零點、滿度,溫補、線性補償;
超低功耗設計,待機電流小于50uA,發送電流1.5mA
供電范圍:3-5VDC,可3.6VDC鋰電流供電;

常用關鍵字:
數字壓力變送器 低功耗壓力變送器
TTL壓力變送器 低功率壓力變送器
數字壓力傳感器 低功耗壓力傳感器
<
>
  • 產品優勢
  • 規格參數
  • 訂購注意事項
  • 使用注意事項
  • 常見問題
  • 我要提建議


芯       片:

進口品牌感壓芯片晶圓;
選進的貼片工藝及全密封封裝;

信號處理及輸出:
32位ADC采樣處理芯片;
DSP數字信號調理算法;
多點性線溫度校準;
電壓電流過載保護;
超低功耗的穩定放大集成電路,待機電流小于50uA,工作電流小于1.5mA;
低電壓供電3-5VDC,適用于鋰電池、USB供電;

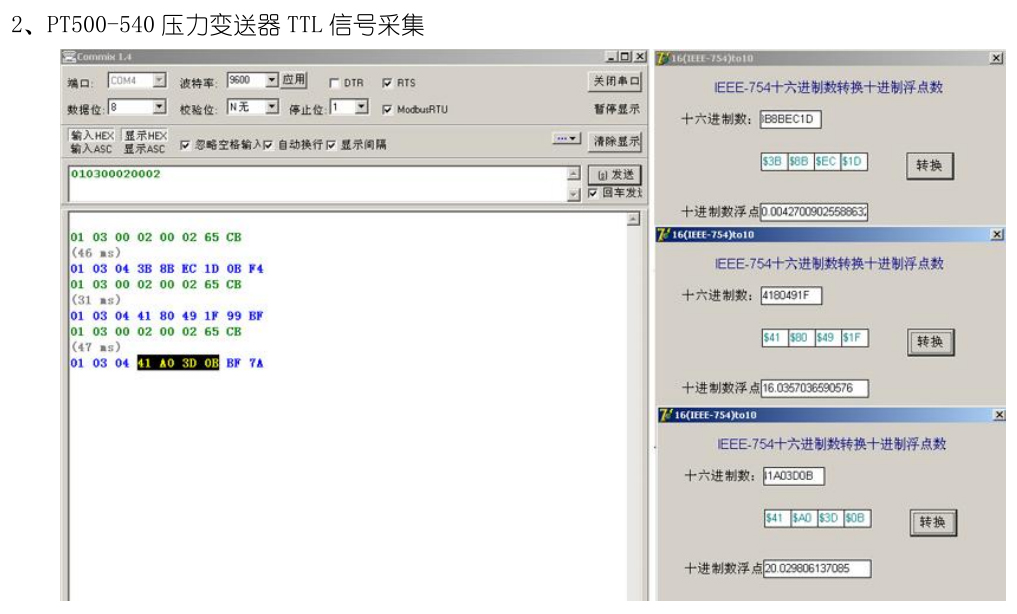

TTL MODBUS-TRU標準通訊協議,直接對接單片機數據采集;

結       構:
結構小巧、全封焊結構、抗沖擊、耐疲勞、可靠性高、多種過程連接方式
過程連接材料,304/316;
電氣連接:DIN43650赫斯曼標準電氣連接器;
配套標準四芯屏蔽電纜;

應      用:
管道水壓及水壓設備壓力測量
液壓系統管道及液壓設備壓力測量
智慧城市給水管網壓力監控
智能消防水壓壓力監控
其它民用/工業 自動化領域的壓力測量

Common keywords:
Digital pressure transmitter low power consumption pressure transmitter
TTL pressure transmitter low power pressure transmitter
Digital pressure sensor low power pressure sensor

Chip:
Imported brand pressure sensitive chip wafer;
Selected chip technology and full sealed package;

Signal processing and output:
32-bit ADC sampling and processing chip;
DSP digital signal conditioning algorithm;
Multipoint linear temperature calibration;
Voltage and current overload protection;
The stable amplifier IC with ultra-low power consumption has a standby current of less than 50ua and a working current of less than 1.5mA;
Low voltage power supply 3-5vdc, suitable for lithium battery and USB power supply;
TTL modbus-tru standard communication protocol, direct docking single chip data acquisition;

Structure:
Compact structure, full seal welding structure, impact resistance, fatigue resistance, high reliability, a variety of process connection mode
Process connection material, 304 / 316;
Electrical connection: din43650 hesman standard electrical connector;
Supporting standard four core shielded cable;

Application:
Pipeline water pressure and pressure measurement of hydraulic equipment
Pressure measurement of hydraulic system pipeline and hydraulic equipment
Pressure monitoring of water supply network in smart city
Intelligent fire water pressure monitoring
Pressure measurement in other fields of civil / industrial automation
應用領域:
  • 智慧消防

  • 智慧城市

  • 油壓系統

  • 消防系統

  • 石油管道

  • 供氣管道

一、技術參數
測量介質:液體、氣體(與產品過程連接材料兼容)
壓力形式:表壓、絕壓
量    程:0~0.6~60MPa
            -0.1~0~0.6~5MPa
  -100KPa~10KPa~40MPa
  ±10KPa~±100KPa
綜合精度:±0.25%FS;±0.5%FS;±1%FS
非 線 性:≤0.25%FS
重 復 性:≤0.1%FS
輸出信號:TTL MODBUS-RTU數字通訊
供電電壓:3.6VDC(3~5VDC)
絕緣阻抗:≥1000 MΩ/100VDC
介質溫度:-20~80℃
環境溫度:-20~70℃
補償溫度:0~70℃
響應時間:≤5mS
過載壓力:150%FS
破壞壓力:5倍量程(量程小于5MPa);3倍量程(量程大于5MPa)
電氣連接:赫斯曼(DIN43650)
防護等級:IP65
連接電纜:四芯屏蔽電纜,標準長度:3米
連接材料:304/316L
過程連接:M20X1.5,G1/2,G1/4,ZG1/4,1/4NPT,ZG1/2,G3/8,M12X1.5……

二、規格型號

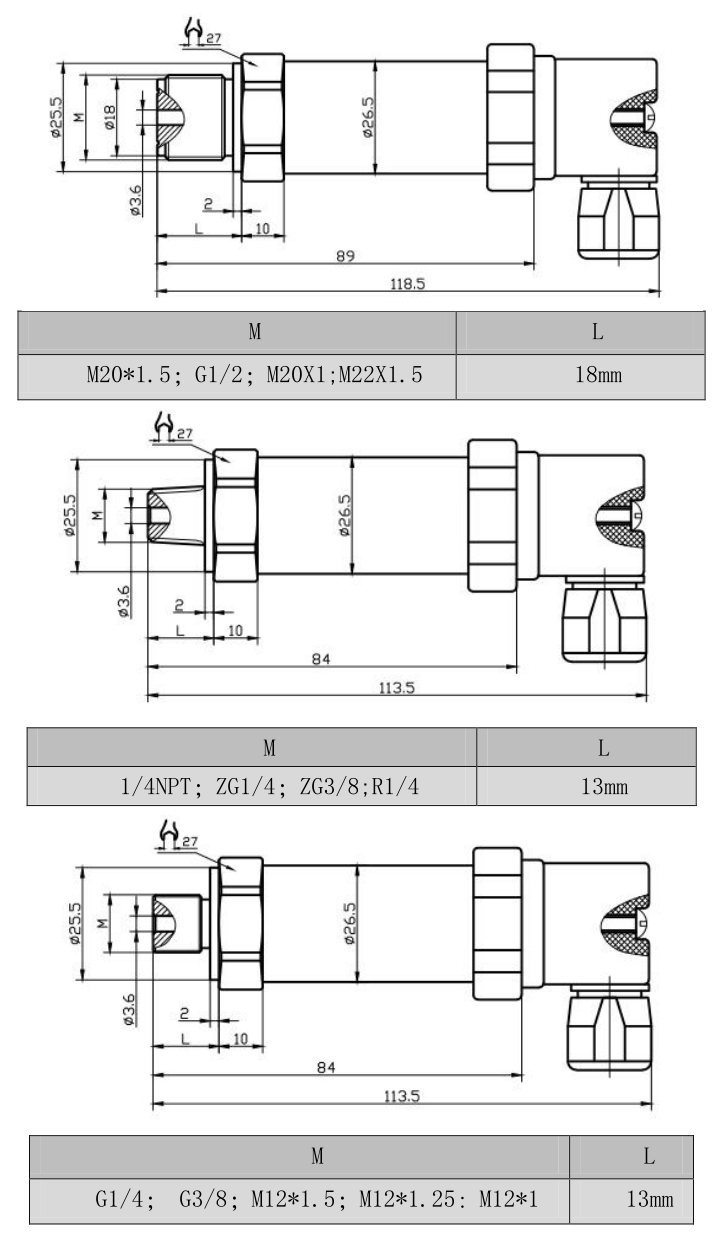

三、結構尺寸

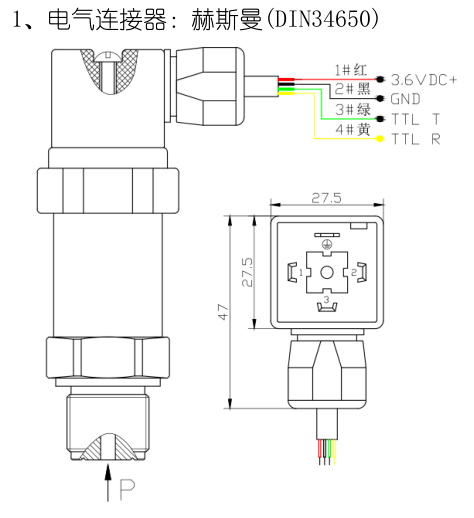

四、電氣連接

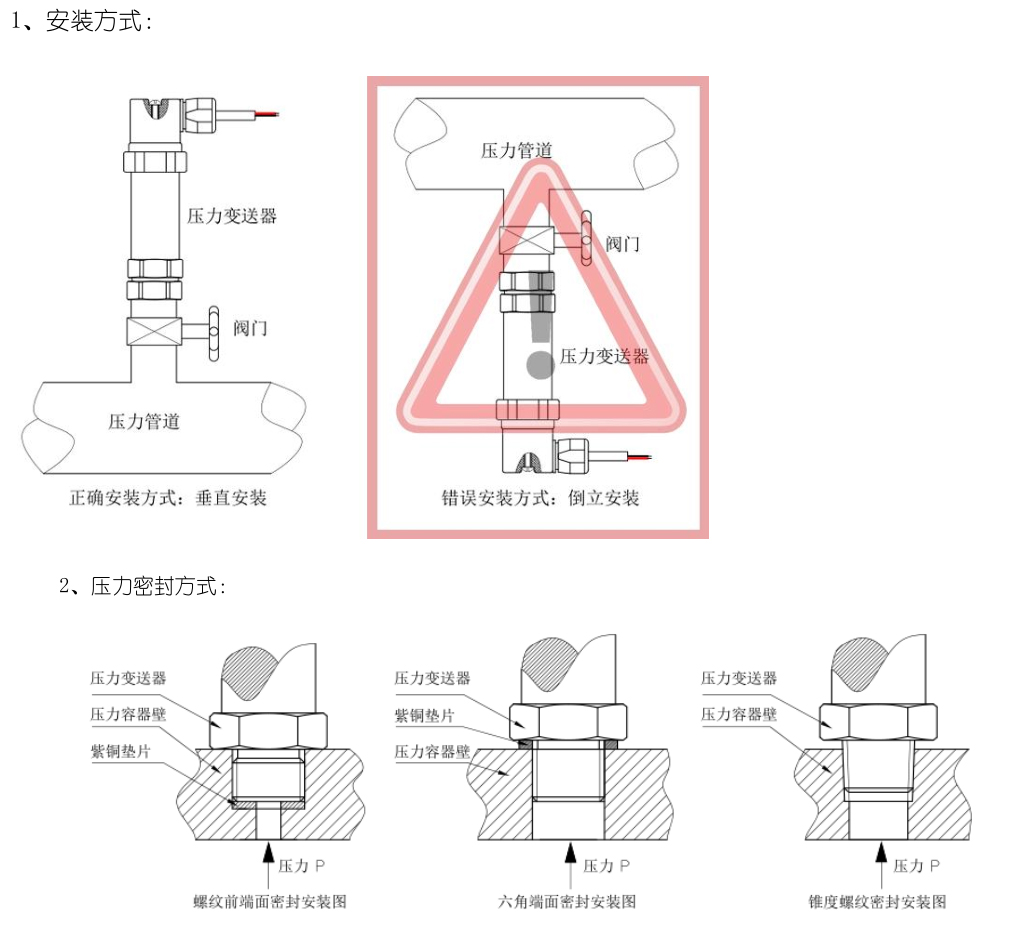

五、安裝方式


PT500-540 TTL數字壓力變送器訂購注意事項
1、產品量程選擇:
   為了使產品精度、壽命、穩定性等功能達到最佳效果,產品的量程選   擇參照以下公式計算:
   量程 = 系統最大壓力 X (1.2-1.5)倍;
   產品的實際測量壓力范圍,應該在量程范圍的15%-80%;

2、產品供電及輸出:
   供電范圍3-5VDC:
   低功耗TTL-RTU輸出;
   請先了解通訊協議;

3、用戶要了解產品的測量介質特性:
   介質規格、介質溫度、介質純度(是否含有雜質或顆粒等);

4、用戶要了解產品的安裝環境及安裝方式:
   室內或室外安裝;
   環境溫度;
   要求的密封等級;
   設備的振動范圍;
   壓力密封方式:錐度密封、端面密封、弧面密封、球面密封;
   安裝空間是否滿足產品外形尺寸;

Precautions for ordering PT500-540 TTL digital pressure transmitter
1. Product range selection:
In order to achieve the best effect of product accuracy, life, stability and other functions, the range selection of the product is calculated by referring to the following formula:
Range = x (1.2-1.5) times of the maximum system pressure;
The actual measuring pressure range of the product should be 15% - 80% of the range;

2. Product power supply and output:
Power supply range 3-5vdc:
Low power ttl-rtu output;
Please understand the communication protocol first;

3. The user should understand the measurement medium characteristics of the product:
Medium specification, medium temperature, medium purity (whether containing impurities or particles, etc.);

4. Users should understand the installation environment and installation method of the product:
Indoor or outdoor installation;
Ambient temperature;
Required sealing level;
Vibration range of equipment;
Pressure seal: taper seal, face seal, arc seal, spherical seal;
Whether the installation space meets the overall dimension of the product;
PT500-540 TTL數字壓力變送器使用注意事項
產品供電3.6VDC(范圍:3-5VDC);
嚴禁使用硬物(如:螺絲刀、手指、鐵釘?shù)龋┤ナ沟脡盒倔w受壓力測量輸出;
電源和信號線按訂購產品規格要求,正確接線;
產品安裝時,受力部位為“過程連接六方扳手位”,扳手規格與六方相對應;
嚴禁被測系統的介質溫度、壓力量程、激勵電壓超過變送器的額定使用范圍;
注意保護變送器引出電纜,現場使用跨度過大時,建議使用金屬管保護或架空;
壓力變送器屬精密計量儀器,切勿強加沖擊、摔打,以免損壞芯體;
產品安裝于通風、干燥、無強腐蝕環境,露天安裝加防護裝置,避免陽光直接照射;

Precautions for PT500-540 TTL digital pressure transmitter
Product power supply 3.6vdc (range: 3-5vdc);
It is strictly prohibited to use hard objects (such as screwdriver, finger, iron nail, etc.) to make the pressure core body under pressure measurement output;
The power and signal wires shall be correctly wired according to the specifications of the ordered products;
When the product is installed, the stressed part is "process connection hexagon wrench position", and the wrench specification corresponds to hexagon;
It is strictly prohibited that the medium temperature, pressure range and excitation voltage of the tested system exceed the rated use range of the transmitter;
Pay attention to protect the outgoing cable of the transmitter. When the span is too large on site, it is recommended to use metal pipe for protection or overhead;
The pressure transmitter is a precision measuring instrument, do not impose impact or smash to avoid damaging the core;
The product is installed in a ventilated, dry and non corrosive environment, and installed in the open with protective devices to avoid direct sunlight;
