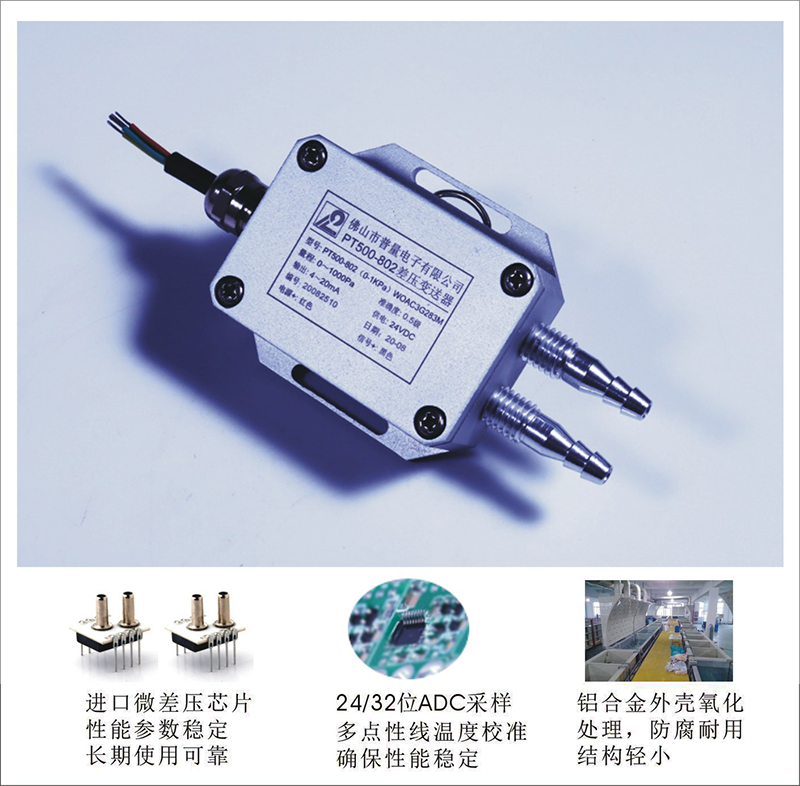

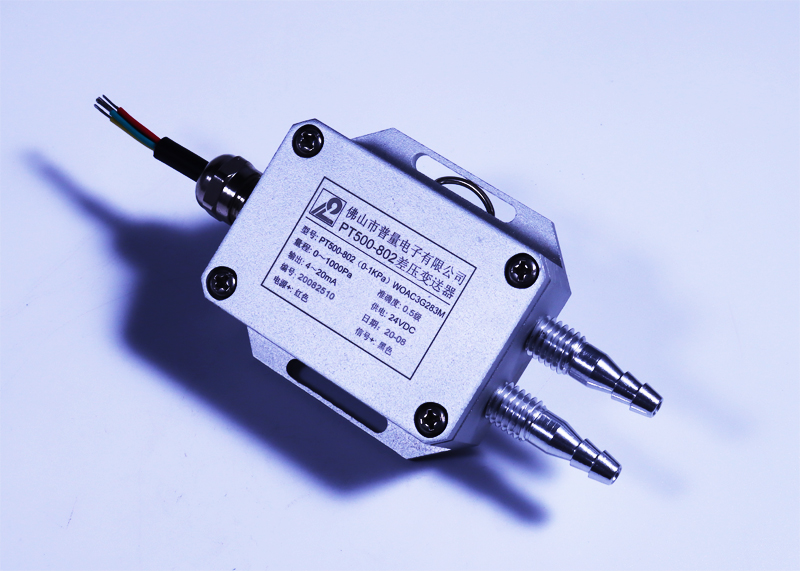

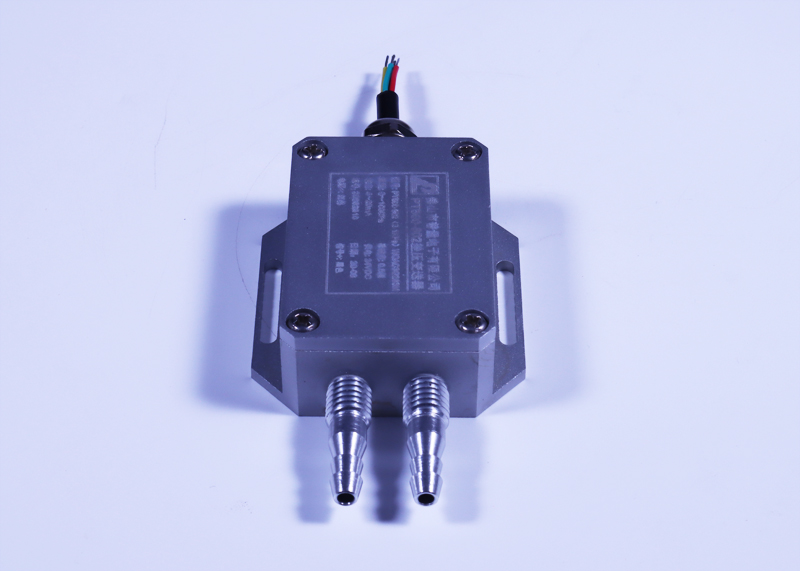

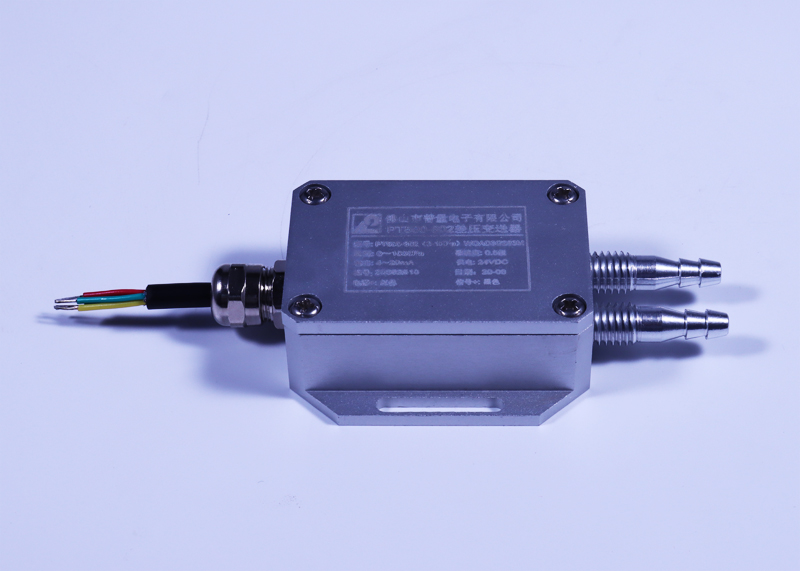

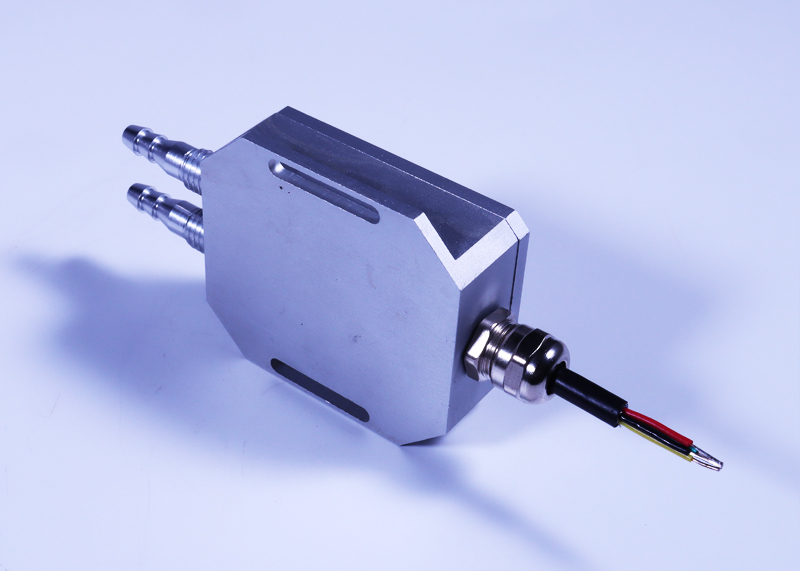

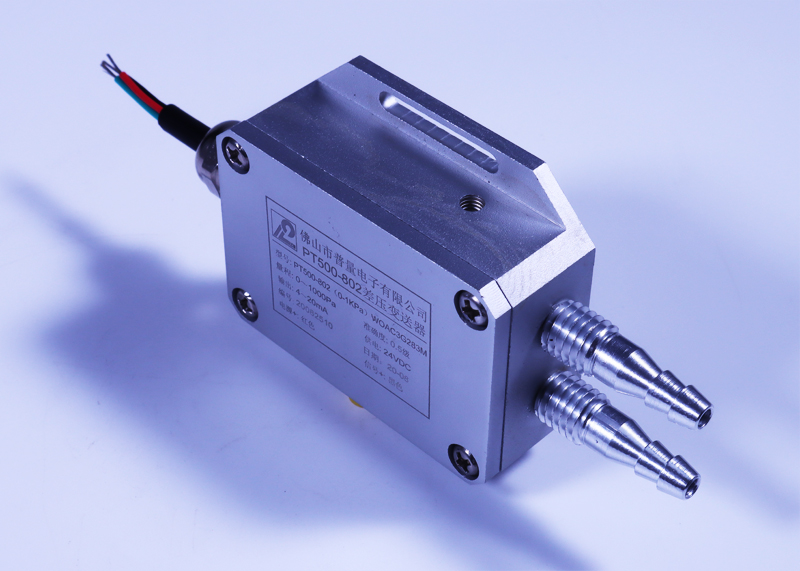

微差壓變送器PT500-802
型號:PT500-802
進口型微壓差壓力芯片,最少壓差100Pa;
3-5倍耐壓,適用于干燥性氣體壓差測量;
高精度、穩定、數字標定調節、放大集成電路;
零點、滿度,溫補、線性補償;
鋁合金氧化外殼;8mm+M10快速插頭過程連接;

常用關鍵字:
微差壓變送器 微差壓傳感器
微壓差壓力變送器 微壓差壓力傳傳感器
<
>
  • 產品優勢
  • 規格參數
  • 訂購注意事項
  • 使用注意事項
  • 常見問題
  • 我要提建議

型號:PT500-802
進口型微壓差壓力芯片,最少壓差100Pa;
3-5倍耐壓,適用于干燥性氣體壓差測量;
高精度、穩定、數字標定調節、放大集成電路;
零點、滿度,溫補、線性補償;
鋁合金氧化外殼;8mm+M10快速插頭過程連接;

常用關鍵字:
微差壓變送器  微差壓傳感器
微壓差壓力變送器 微壓差壓力傳傳感器

Model: PT500-802
The minimum differential pressure is 100Pa;
3-5 times withstand voltage, suitable for dry gas differential pressure measurement;
High precision, stable, digital calibration adjustment, amplification integrated circuit;
Zero point, fullness, temperature compensation and linear compensation;
Aluminum alloy oxidation shell; 8mm + m10quick plug process connection;

Common keywords:
Micro differential pressure transmitter micro differential pressure sensor
Micro differential pressure transmitter


芯       片:
進口型微壓差壓力芯片,最少壓差100Pa;
3-5倍耐壓,適用于干燥性氣體壓差測量;
零點、滿度,溫補、線性補償;
高阻抗、高精度、高穩定性;
100萬次使用壽命以上;

信號處理及輸出:
24位ADC采樣處理芯片;
DSP數字信號調理算法;
多點性線溫度校準;
電壓電流過載保護;
標準工業信號輸出:4-20mA(二線制),0-20mA(三線制),0-5VDC,0-10VDC,0.5-4.5VDC(三線制);

數字通訊信號輸出:RS485-RTU、超低功耗RS485-RTU
采用先進的32bit微處理器和24bit ADC
傳輸協議采用通用的MODBUS-RTU協議
支持波特率:1200~57600bps,校驗位:NONE、ODD、EVEN
支持用戶二次校準、清零、反清零、恢復出廠等操作
支持11種單位切換,支持浮點型、整型、百分比、格式化輸出
采集間隔0~43200秒(12小時)可設,既可連續采集,滿足高速采集的場合,也可單次觸發采集,最大限度降低功耗

數字通訊信號輸出:Can2.0B
測量速率:10...1000Hz 可設置,默認50Hz

CANopen輸出內置 完整的 CANopen 協議棧,符合 DS301、DS404 規范,支持 LSS 服務,支持 BootLoader 在線 升級;
支持波特率20/50/100/125/250(默認)/500/800/1000;支持特性 NMT/Heartbeat/SDO/PDO/LSS/Bootloader;CANopen 協議棧可以根據用戶的要求進行定制;

J1939輸出內置 J1939 協議棧,可以自由配置 PGN、SPN 以及 NAME,支持 BootLoader 在線升級;
支持波特率20/50/100/125/250(默認)/500/800/1000
;支持特性PGN、SPN、NAME等自由配置
,J1939 協議??梢愿鶕?jù)用戶的要求進行定制;

結       構:
鋁合金氧化外殼;8mm+M10快速插頭過程連接;
結構小,緊線螺母防水出線方式電氣連接;
配套四/五芯屏蔽電纜;

應      用:
負壓、無塵車間、科室等壓力測量與監控;
樓宇、通風等壓力測量與監控;
吸塵管道,廢氣處理等壓力測量與監控;



Chip:
The minimum differential pressure is 100Pa;
3-5 times withstand voltage, suitable for dry gas differential pressure measurement;
Zero point, fullness, temperature compensation and linear compensation;
High impedance, high precision and high stability;
More than 1 million times of service life;

Signal processing and output:
24 bit ADC sampling and processing chip;
DSP digital signal conditioning algorithm;
Multipoint linear temperature calibration;
Voltage and current overload protection;
Standard industrial signal output: 4-20mA (two-wire system), 0-20mA (three wire system), 0-5vdc, 0-10vdc, 0.5-4.5vdc (three wire system);

Digital communication signal output: rs485-rtu, ultra-low power rs485-rtu
Advanced 32 bit microprocessor and 24 bit ADC are adopted
The transmission protocol is MODBUS-RTU
Support baud rate: 1200 ~ 57600bps, check bits: none, odd, even
Support the user's secondary calibration, reset, anti reset, restore factory operations
Support 11 kinds of units switching, support floating point, integer, percentage, formatted output
The acquisition interval of 0 ~ 43200 seconds (12 hours) can be set, which can not only meet the needs of high-speed acquisition, but also trigger acquisition once to

minimize power consumption

Digital communication signal output: CAN2.0B
Measurement rate: 10... 1000Hz can be set, the default is 50 Hz

CANopen output built-in complete CANopen protocol stack, in line with ds301, ds404 specifications, support LSS services, support bootloader online upgrade;
Support baud rate (kbps) 20 / 50 / 100 / 125 / 250 (default) / 500 / 800 / 1000; support features of NMT / heartbeat / SDO / PDO / LSS / bootloader; CANopen protocol

stack can be customized according to user requirements;

J1939 output has built-in J1939 protocol stack. PGN, SPN and name can be configured freely, and bootloader online upgrade is supported;
Support baud rate (kbps) 20 / 50 / 100 / 125 / 250 (default) / 500 / 800 / 1000; support free configuration of features such as PGN, SPN and name
The J1939 protocol stack can be customized according to the user's requirements;

Structure:
Aluminum alloy oxidation shell; 8mm + m10quick plug process connection;
Small structure, tight wire nut waterproof, electrical connection;
Supporting four / five core shielded cable;

Application:
Pressure measurement and monitoring of negative pressure, dust-free workshop, Department, etc;
Pressure measurement and monitoring of buildings, ventilation, etc;
Pressure measurement and monitoring of dust collection pipeline, waste gas treatment, etc;

應用領域:
  • 智慧城市

  • 消防系統

  • 天然氣管道

  • 送風系統

  • 供氣系統

  • 供氣管道

一、技術參數
測量介質:干燥性氣體
壓力形式:差壓
量    程:
0~100、200、300、500、1000(Pa);
0~1、2、3、5、10、20、30、40、50、70、100(KPa);
-100KPa~-10KPa~0~100(KPa);
±500Pa~±100KPa;
靜壓(耐壓):3~5倍量程
綜合精度:±0.25%FS;±0.5%FS;±1%FS
非 線 性:≤0.5%FS
重 復 性:≤0.25%FS
輸出信號:
電流型:4~20mA二線制;4~20mA/0-20mA三線制
電壓型:0~5VDC、0~10VDC、0.5~4.5VDC三線制
數字型:RS485-RTU、低功耗RS485-RTU
Can2.0B(支持CANopen、J1939 協議)
供電電壓:
24VDC(9~30VDC)
5VDC(0.5~4.5VDC輸出型)
3.1~6.1VDC(低功耗RS485-RTU)
壽    命:≥100萬次
絕緣阻抗:≥1000 MΩ/100VDC
負載阻抗:電流輸出: ≤800Ω;電壓輸出:≥50KΩ
介質溫度:-20~70℃/
環境溫度:-20~70℃
補償溫度:0~60℃
響應時間:≤3mS
過載壓力:150%FS
破壞壓力:3倍量程(量程小于40MPa);2倍量程(量程大于41MPa)
電氣連接:防水緊線螺母直接出線,可配套防爆電氣連接
防護等級:IP65/IP68
連接電纜:緊線螺母,標準長度:3米
連接材料:鋁合金
過程連接:φ8快速插頭+M10螺紋(通用)……可用戶制訂規格

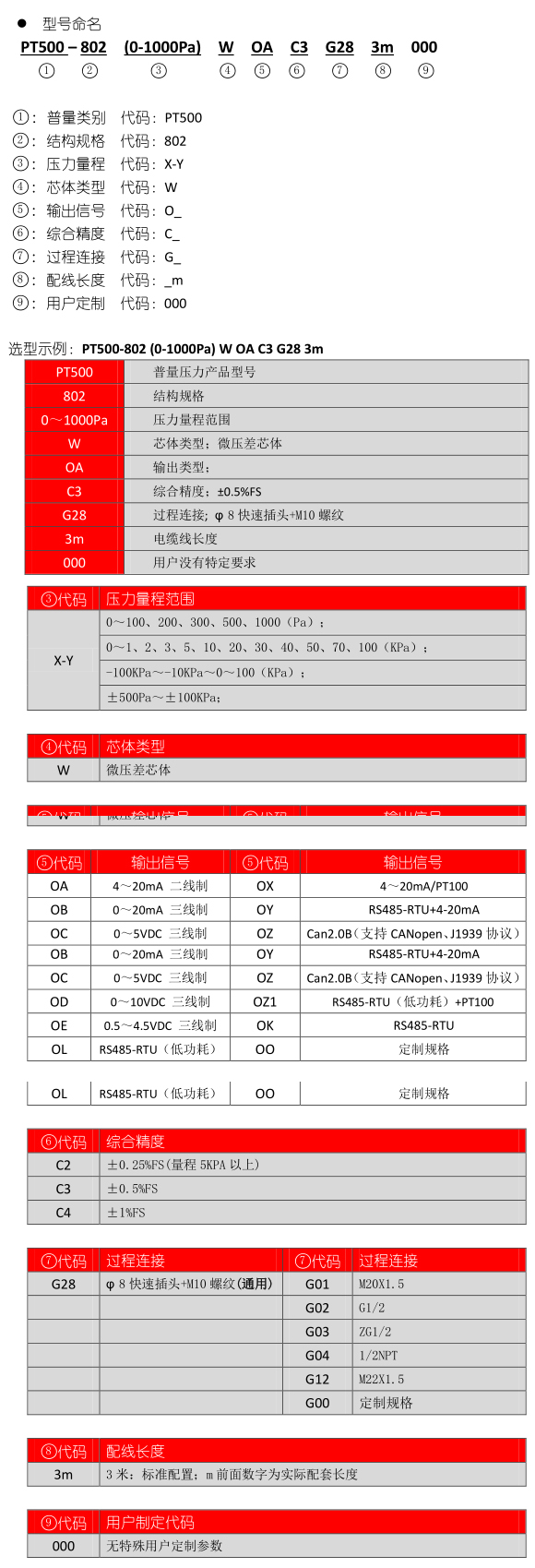

二、規格型號

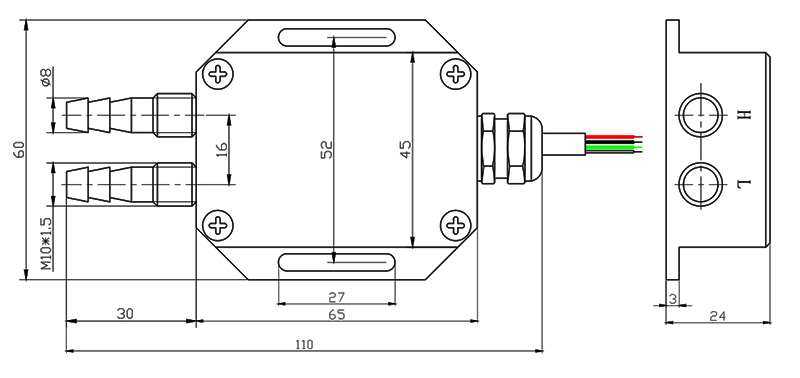

三、結構尺寸

四、輸出信號

Measuring medium: dry gas
Pressure form: differential pressure
Range:
0~100、200、300、500、1000(Pa);
0~1、2、3、5、10、20、30、40、50、70、100(KPa);
-100KPa~-10KPa~0~100(KPa);
±500Pa~±100KPa;

Static pressure (withstand voltage): 3 ~ 5 times of measuring range
Comprehensive accuracy: ± 0.25% FS; ± 0.5% FS; ± 1% FS
Nonlinearity: ≤ 0.5% FS
Repeatability: ≤ 0.25% FS
Output signal:
Current type: 4-20mA two-wire system; 4-20mA / 0-20mA three-wire system
Voltage type: 0 ~ 5VDC, 0 ~ 10VDC, 0.5 ~ 4.5vdc three wire system
Digital type: rs485-rtu, low power rs485-rtu
CAN2.0B (supports CANopen, J1939 Protocol)

Supply voltage:
24VDC(9~30VDC)
5VDC (0.5 ~ 4.5vdc output type)
3.1 ~ 6.1vdc (low power rs485-rtu)

Service life: ≥ 1 million times
Insulation impedance: ≥ 1000 m Ω / 100VDC
Load impedance: current output: ≤ 800 Ω; voltage output: ≥ 50K Ω
Medium temperature: - 20 ~ 70 ℃/
Ambient temperature: - 20 ~ 70 ℃
Compensation temperature: 0 ~ 60 ℃
Response time: ≤ 3MS
Overload pressure: 150% FS
Failure pressure: 3 times of measuring range (less than 40MPa); 2 times of measuring range (measuring range greater than 41mpa)
Electrical connection: Waterproof tight wire nut directly leads out, can be matched with explosion-proof electrical connection
Protection grade: IP65 / IP68
Connecting cable: tightening nut, standard length: 3M
Connection material: aluminum alloy
Process connection: φ 8 quick plug + M10 thread (Universal) Specification can be made by users

PT500-802產品訂購注意事項
1、產品量程選擇:
   為了使產品精度、壽命、穩定性等功能達到最佳效果,產品的量程選擇參照以下公式計算:
   量程 = 系統最大壓力 X (1.2-1.5)倍;
   產品的實際測量壓力范圍,應該在量程范圍的15%-80%;
   靜壓(耐壓)為量程值的3到5倍,即高壓端最大壓力值;

2、產品供電及輸出:
   供電范圍的選擇按產品的個輸出規格確定:
   常規4-20mA/0-20mA、0-5V/10V輸出,直流12-30VDC供電;
   通用RS485-RTU輸出,直流12-30VDC供電;
   0.5-4.5VDC輸出,直流5VDC;

3、用戶要了解產品的測量介質特性:
   介質規格、介質溫度、介質純度(是否含有雜質或顆粒等);

4、用戶要了解產品的安裝環境及安裝方式:
   室內或室外安裝;
   環境溫度;
   要求的密封等級;
   設備的振動范圍;
   安裝方式:螺紋、法蘭、特殊結構;
   安裝空間是否滿足產品外形尺寸;


Precautions for ordering PT500-802 products
1. Product range selection:
In order to achieve the best effect of product precision, life, stability and other functions, the range selection of the product is calculated according to the following formula:
Range = x (1.2-1.5) times of the maximum system pressure;
The actual measuring pressure range of the product should be 15% - 80% of the measuring range;
The static pressure (withstand voltage) is 3 to 5 times of the range value, that is, the maximum pressure value at the high pressure end;

2. Product power supply and output:
The selection of power supply range is determined according to the output specifications of the product:
Conventional 4-20mA / 0-20mA, 0-5V / 10V output, DC 12-30vdc power supply;
General rs485-rtu output, DC 12-30vdc power supply;
0.5-4.5vdc output, DC 5VDC;

3. The user should understand the measurement medium characteristics of the product:
Medium specification, medium temperature, medium purity (whether containing impurities or particles, etc.);

4. Users should understand the installation environment and installation method of the product:
Indoor or outdoor installation;
Ambient temperature;
Required sealing level;
Vibration range of equipment;
Installation method: thread, flange, special structure;
Whether the installation space meets the overall dimension of the product;


嚴禁產品供電范圍超過產品規定標準;
產品測量介質為:干燥性氣體,嚴禁用于測量液體、蒸汽或濕度大氣體介質;
嚴禁使用硬物(如:螺絲刀、手指、鐵釘?shù)龋┤ナ沟脡毫δて軌毫y(cè)量輸出;
電源和信號線按訂購產品規格要求,正確接線;
產品安裝時,引壓管采用8mm硬質氣管,防止氣體壓力使用氣管膨脹;
嚴禁被測系統的介質溫度、壓力量程、激勵電壓超過變送器的額定使用范圍;
注意保護變送器引出電纜,現場使用跨度過大時,建議使用金屬管保護或架空;
壓力變送器屬精密計量?jī)x器,切勿強加沖擊、摔打,以免損壞芯體
產品安裝于通風、干燥、無強腐蝕環境,露天安裝加防護裝置,避免陽光直接照射;
產品儀表嚴禁進水/漏水/泡水情況,露天安裝加防護裝置,避免陽光直接照射;


It is strictly prohibited that the power supply scope of the product exceeds the specified standard of the product;
The measuring medium of the product is: dry gas. It is forbidden to measure liquid, steam or gas medium with high humidity;
It is forbidden to use hard objects (such as: screwdrivers, fingers, nails, etc.) to make the pressure diaphragm output by pressure measurement;
The power supply and signal line should be connected correctly according to the product specification;
When the product is installed, the pressure pipe is made of 8mm hard gas pipe to prevent the expansion of the gas pipe under gas pressure;
It is strictly prohibited that the medium temperature, pressure range and excitation voltage of the measured system exceed the rated range of the transmitter;
Pay attention to protect the outgoing cable of transmitter. When the span is too large, it is recommended to use metal tube for protection or overhead;
Pressure transmitter is a kind of precision measuring instrument. Do not force impact and fall to avoid damaging the core body
The product is installed in a ventilated, dry and non corrosive environment. It is installed in the open air with protective devices to avoid direct sunlight;
Do not let water / water leak / soak into the instrument. Install protective devices in the open air to avoid direct sunlight;
