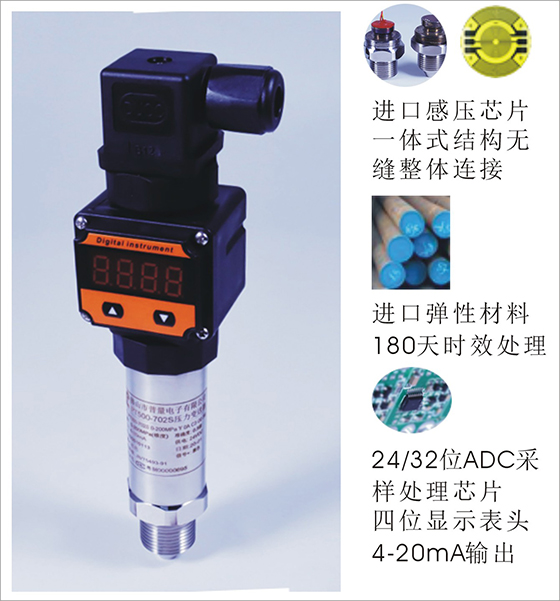

芯? ? ? ?片:
采用進口感壓芯片;選進的貼片工藝,具有零點、滿量程補償、溫度補償;
應變計芯體,高強度彈性形變感壓材料,配有溫度補償,具有抗沖擊、耐疲勞性能優勢;
微機械加工工藝,一體化結構設計、整體彈性材料,無焊工藝,受壓1000MPA不會破裂,確保產品的安全性;
信號處理及輸出:
24位ADC采樣處理芯片;
DSP數字信號調理算法;
多點性線溫度校準;
電壓電流過載保護;
標準工業信號輸出:4-20mA(二線制);
四位顯示壓力表頭,顯示范圍:-1999-9999,采樣速率:10次/S;
結? ? ? ?構:
結構小巧、全封焊結構、抗沖擊、耐疲勞、可靠性高、多種過程連接方式;

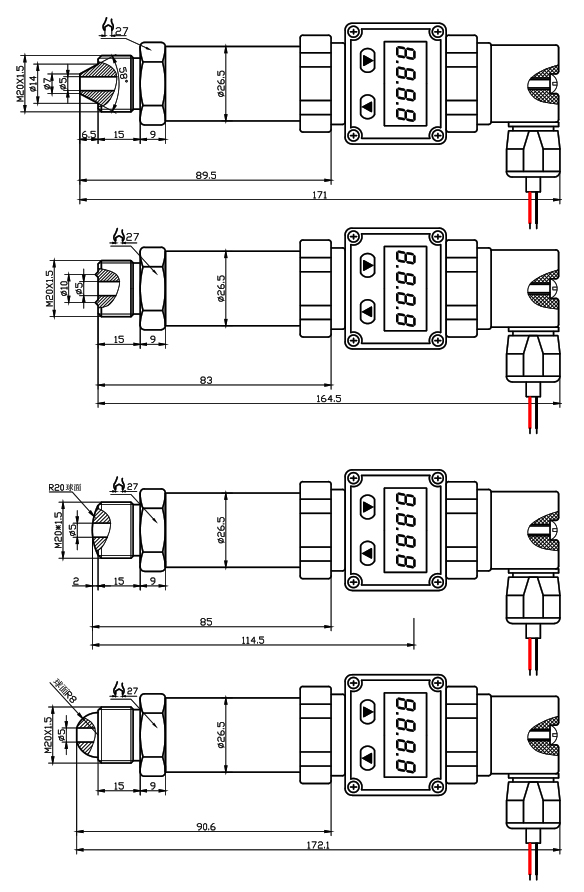

過程連接材料,304,四種密封方式可選:錐度密封、端面密封、弧面密封、球面密封;

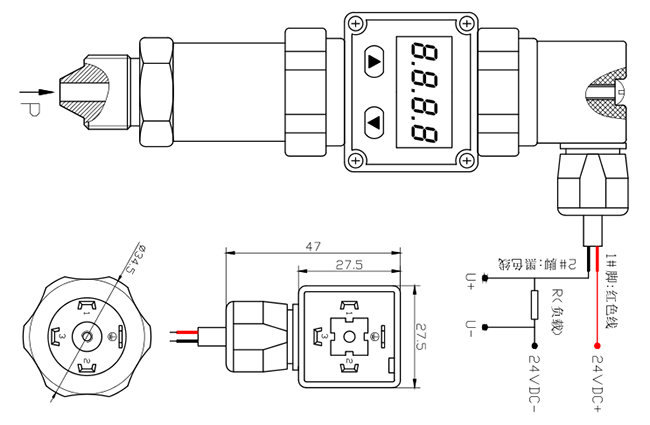

DIN43650赫斯曼標準電氣連接器;
配套標準四芯屏蔽電纜;
應? ? ? 用:
大型液壓機械,液壓站的壓力測量;
水刀機,陶瓷線割機壓力測量與控制;
液壓系統管道及液壓設備壓力測量控制;
室內外高壓水泵等設備的壓力測量與控制;
Chip:
Adopt imported voltage sensing chip; select the chip technology, with zero, full range compensation, temperature compensation;
Strain gauge core, high-strength elastic deformation pressure sensing material, equipped with temperature compensation, has the advantages of impact resistance and fatigue resistance;
Micromachining process, integrated structural design, integral elastic material, no welding process, 1000 MPa compression will not crack, to ensure the safety of the product;
Signal processing and output:
24 bit ADC sampling processing chip;
DSP digital signal conditioning algorithm;
Multipoint line temperature calibration;
Voltage and current overload protection;
Standard industrial signal output: 4-20mA (two-wire system);
Four digit pressure indicator, display range: - 1999-9999, sampling rate: 10 times / S;
Structure:
Small structure, full seal welding structure, impact resistance, fatigue resistance, high reliability, a variety of process connection;
Process connection material, 304, four sealing methods are optional: taper seal, end face seal, arc face seal and spherical seal;
Din43650 Hersman standard electrical connector;
Supporting standard four core shielded cable;
Application:
Pressure measurement of large hydraulic machinery and hydraulic station;
Pressure measurement and control of water cutter and ceramic wire cutter;
Hydraulic system pipeline and hydraulic equipment pressure measurement control;
Pressure measurement and control of indoor and outdoor high-pressure water pump and other equipment;
油壓系統
陶瓷切割
水刀機設備
石油管道
高壓水泵
液壓設備

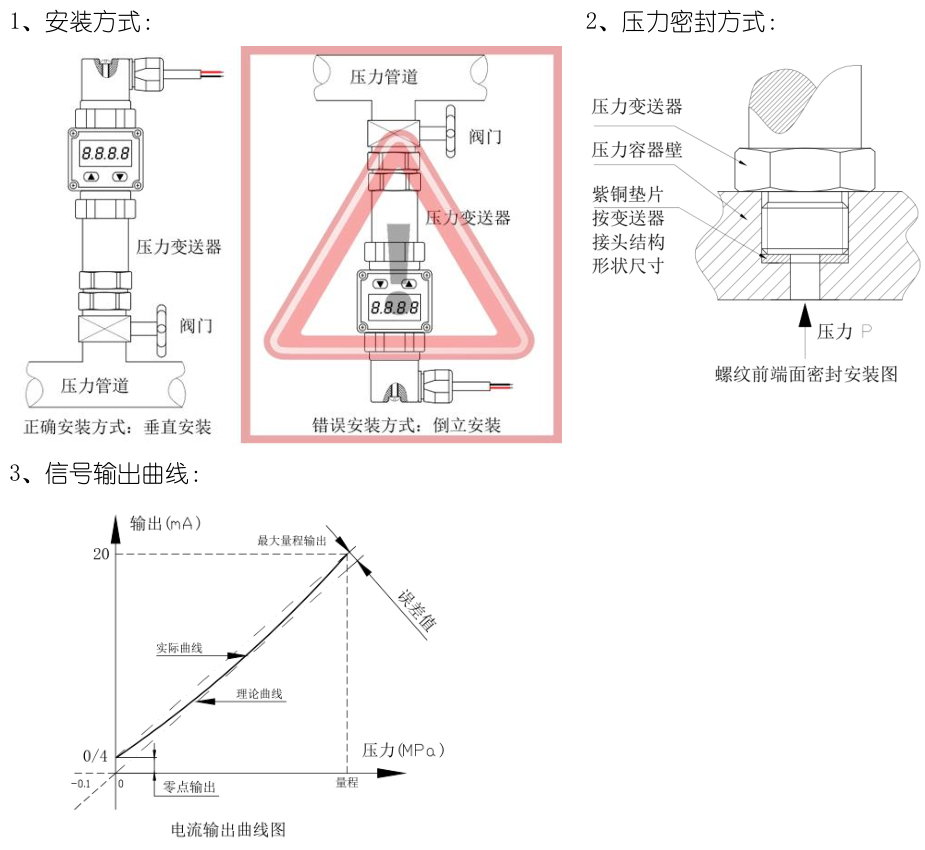

五、安裝方式
