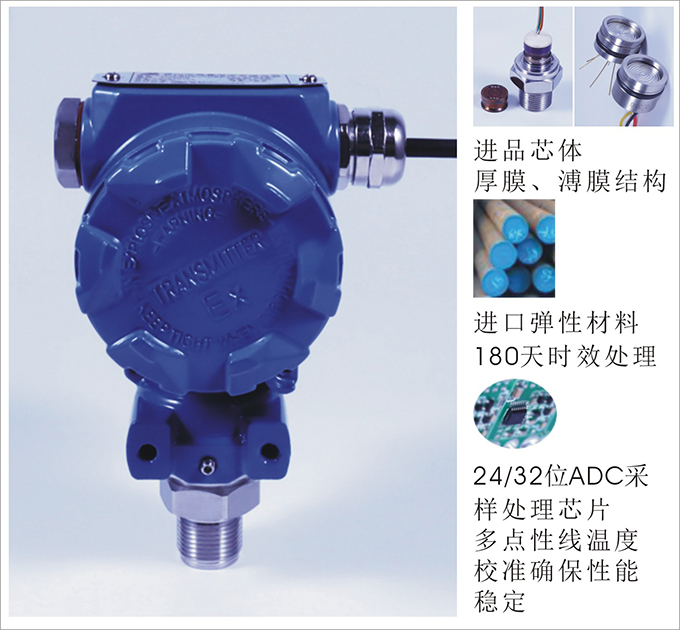

芯 片:
進口壓力芯體;
小量程芯片:充油硅芯片;
大量程芯片:壓阻式厚膜芯片;
零點、滿度,溫補、線性補償;
100萬次使用壽命以上;
信號處理及輸出:
32bit微處理器和24bit ADC;
DSP數字信號調理算法;
多點性線溫度校準;
電壓電流過載保護;

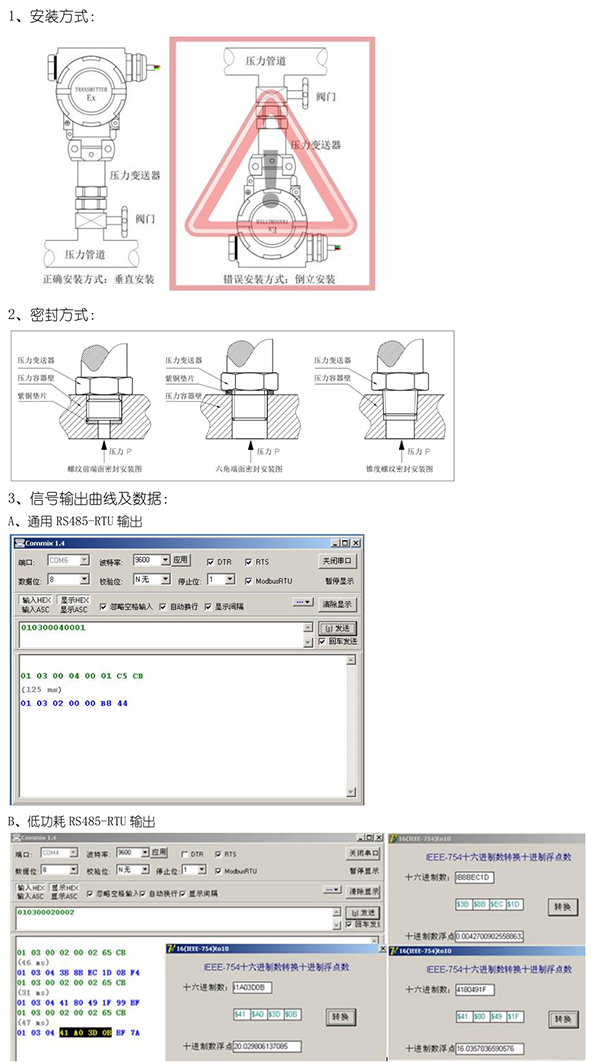

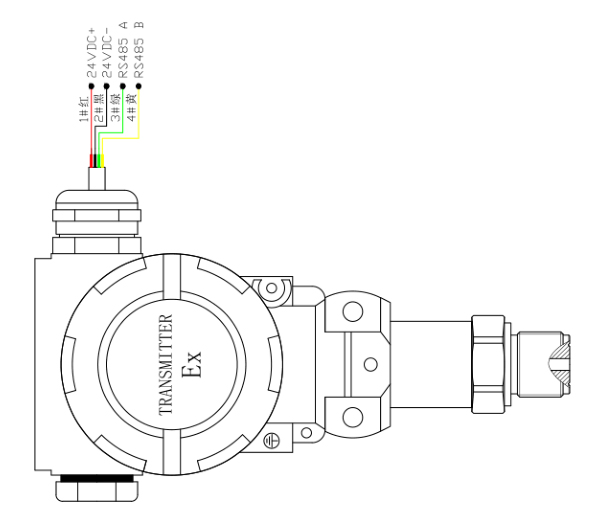

MODBUS RS485-RTU數字輸出/低功耗RS485-RTU數字輸出兩種類型輸出方式;
低功耗型:待機電流小于50uA,采集電流小于2mA;
采集間隔0~43200秒(12小時)可設,既可連續采集,滿足高速采集的場合;
也可單次觸發采集,最大限度降低功耗;
工業及設計,適合DCS系統、組態軟件、PLC系統;
結 構:
厚膜結構:深度氬弧焊接,連接彈性材料與過程接頭,強度高,抗沖擊,耐疲勞;
溥膜結構:激光焊接,連接彈性材料與過程接頭,硅油介質傳遞壓力,響應快,耐疲勞,小量程;
工業級2088鑄鋁合金防爆殼體,強度可靠堅固;

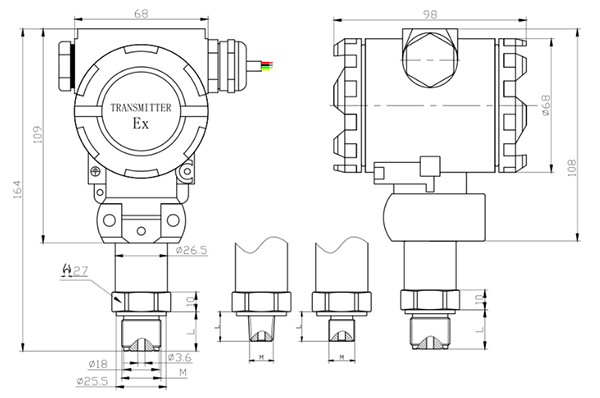

整體結構小巧,過程連接方式多樣化(M20X1.5,G1/2 ,ZG1/2,1/2NPT(螺紋小徑≥17mm)DN50等);
過程連接材料:304或316;
應 用:
油壓、水壓、氣壓壓力測量與監控;
工業/電力/石油/自動化等領域的設備壓力測量
Chip:
Inlet pressure core body;
Small range chip: oil filled silicon chip;
Large range chip: piezoresistive thick film chip;
Zero point, fullness, temperature compensation and linear compensation;
More than 1 million times of service life;
Signal processing and output:
32 bit microprocessor and 24 bit ADC;
DSP digital signal conditioning algorithm;
Multipoint linear temperature calibration;
Voltage and current overload protection;
Two kinds of low power consumption of RS485 digital output mode are provided;
Low power consumption: standby current is less than 50ua, acquisition current is less than 2mA;
The acquisition interval of 0 ~ 43200 seconds (12 hours) can be set, which can not only continuously collect data, but also meet the needs of high-speed acquisition;
It can also trigger acquisition once to minimize power consumption;
Industrial and design, suitable for DCS system, configuration software, PLC system;
Structure:
Thick film structure: deep argon arc welding, connecting elastic material and process joint, high strength, impact resistance and fatigue resistance;
PU film structure: laser welding, connecting elastic material and process joint, transmitting pressure with silicone oil medium, fast response, fatigue resistance,
small range;
Industrial grade 2088 cast aluminum alloy explosion-proof shell with reliable strength;
The overall structure is compact, and the process connection mode is diversified (m20x1.5, G1 / 2, ZG1 / 2, 1 / 2NPT (thread diameter ≥ 17mm) DN50, etc.);
Process connection material: 304 or 316;
Application:
Measurement and monitoring of oil pressure, water pressure and air pressure;
Pressure measurement of equipment in industrial / power / Petroleum / automation fields
